EmissionAbsorptionPhysicalModel Tutorial
Trey V. Wenger (c) July 2025
EmissionAbsorptionPhysicalModel is a re-parameterization of EmissionAbsorptionModel that places more physically motivated constraints on the parameter space.
[1]:
# General imports
import time
import matplotlib.pyplot as plt
import arviz as az
import pandas as pd
import numpy as np
import pymc as pm
print("pymc version:", pm.__version__)
print("arviz version:", az.__version__)
import bayes_spec
print("bayes_spec version:", bayes_spec.__version__)
import caribou_hi
print("caribou_hi version:", caribou_hi.__version__)
# Notebook configuration
pd.options.display.max_rows = None
pymc version: 5.22.0
arviz version: 0.22.0dev
bayes_spec version: 1.9.0
caribou_hi version: 4.1.0+3.g94a913e.dirty
Simulating Data
[2]:
from bayes_spec import SpecData
# spectral axes definitions
emission_axis = np.linspace(-60.0, 60.0, 200) # km s-1
absorption_axis = np.linspace(-30.0, 30.0, 100) # km s-1
# data noise can either be a scalar (assumed constant noise across the spectrum)
# or an array of the same length as the data
rms_emission = 0.1 # K
rms_absorption = 0.001 # 1 - exp(-tau)
# brightness data. In this case, we just throw in some random data for now
# since we are only doing this in order to simulate some actual data.
emission = rms_emission * np.random.randn(len(emission_axis))
absorption = rms_absorption * np.random.randn(len(absorption_axis))
dummy_data = {
"emission": SpecData(
emission_axis,
emission,
rms_emission,
xlabel=r"$V_{\rm LSR}$ (km s$^{-1}$)",
ylabel=r"$T_B$ (K)",
),
"absorption": SpecData(
absorption_axis,
absorption,
rms_absorption,
xlabel=r"$V_{\rm LSR}$ (km s$^{-1}$)",
ylabel=r"1 - exp(-$\tau$)",
),
}
# Plot dummy data

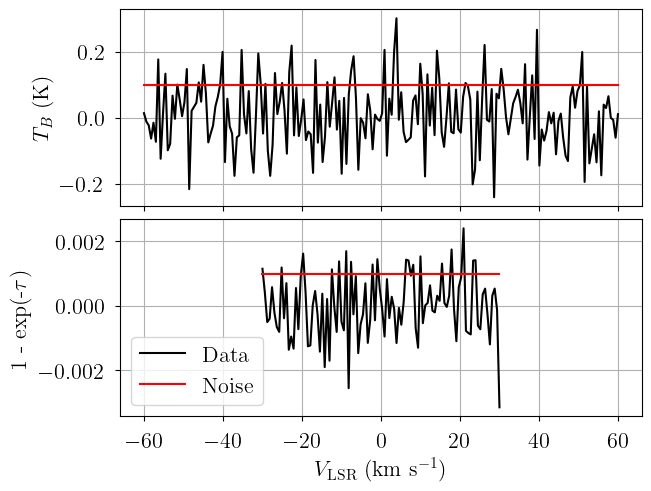

fig, axes = plt.subplots(2, layout="constrained", sharex=True)
axes[0].plot(dummy_data["emission"].spectral, dummy_data["emission"].brightness, "k-")
axes[0].plot(dummy_data["emission"].spectral, dummy_data["emission"].noise, "r-")
axes[1].plot(dummy_data["absorption"].spectral, dummy_data["absorption"].brightness, "k-", label="Data")
axes[1].plot(dummy_data["absorption"].spectral, dummy_data["absorption"].noise, "r-", label="Noise")
axes[1].set_xlabel(dummy_data["emission"].xlabel)
axes[0].set_ylabel(dummy_data["emission"].ylabel)
axes[1].set_ylabel(dummy_data["absorption"].ylabel)
_ = axes[1].legend(loc="lower left")
[3]:
from caribou_hi import EmissionAbsorptionPhysicalModel
# Initialize and define the model
n_clouds = 3
baseline_degree = 0
model = EmissionAbsorptionPhysicalModel(
dummy_data,
n_clouds=n_clouds,
baseline_degree=baseline_degree,
bg_temp = 3.77, # assumed background temperature (K)
seed=1234,
verbose=True
)
model.add_priors(
prior_filling_factor=[2.0, 1.0], # filling factor prior shape
prior_ff_NHI=1.0e21, # filling factor * column density prior width (cm-2)
prior_fwhm2_thermal_fraction=[2.0, 2.0], # thermal FWHM^2 fraction prior shape
prior_sigma_log10_NHI=0.5, # log-normal column density distribution width
prior_fwhm2=200.0, # FWHM^2 prior width (km2 s-2)
prior_velocity=[-15.0, 15.0], # lower and upper limit of velocity prior (km/s)
prior_log10_n_alpha=[-6.0, 1.0], # log10(n_alpha) prior width (cm-3)
prior_nth_fwhm_1pc=[1.75, 0.25], # non-thermal FWHM at 1 pc prior mean and width (km s-1)
prior_depth_nth_fwhm_power=[0.3, 0.1], # non-thermal FWHM vs. depth power prior mean and width
prior_fwhm_L=None, # Assume Gaussian line profile
prior_baseline_coeffs=None, # Default baseline priors
)
model.add_likelihood()
[4]:
from caribou_hi import physics
# Simulation parameters
filling_factor = np.array([0.2, 0.8, 1.0])
absorption_weight = np.array([0.9, 0.8, 1.0])
log10_nHI = np.array([1.25, 0.0, -0.5])
tkin = np.array([50.0, 300.0, 5000.0])
log10_n_alpha = np.array([-5.5, -6.0, -6.5])
depth = np.array([5.0, 25.0, 300.0])
nth_fwhm_1pc = np.array([2.0, 1.75, 1.5])
depth_nth_fwhm_power = np.array([0.2, 0.3, 0.4])
tspin = physics.calc_spin_temp(tkin, 10.0**log10_nHI, 10.0**log10_n_alpha).eval()
print("tspin", tspin)
fwhm2_nonthermal = physics.calc_nonthermal_fwhm(depth, nth_fwhm_1pc, depth_nth_fwhm_power)**2.0
print("fwhm2_nonthermal", fwhm2_nonthermal)
fwhm2_thermal = physics.calc_thermal_fwhm2(tkin)
print("fwhm2_thermal", fwhm2_thermal)
fwhm2 = fwhm2_nonthermal + fwhm2_thermal
print("fwhm2", fwhm2)
fwhm2_thermal_fraction = fwhm2_thermal/fwhm2
print("fwhm2_thermal_fraction", fwhm2_thermal_fraction)
log10_Pth = np.log10(tkin) + log10_nHI
print("log10_Pth", log10_Pth)
log10_NHI = log10_nHI + np.log10(depth) + 18.489351
print("log10_NHI", log10_NHI)
tau_total = physics.calc_tau_total(10.0**log10_NHI, tspin)
print("tau_total", tau_total)
wt_ff_tkin = absorption_weight / filling_factor / tkin
print("wt_ff_tkin", wt_ff_tkin)
sim_params = {
"wt_ff_tkin": wt_ff_tkin,
"absorption_weight": absorption_weight,
"filling_factor": filling_factor,
"log10_NHI": log10_NHI,
"tau_total": tau_total,
"tspin": tspin,
"fwhm2": fwhm2,
"fwhm2_thermal_fraction": fwhm2_thermal_fraction,
"velocity": np.array([-5.0, 5.0, 10.0]),
"log10_n_alpha": log10_n_alpha,
"nth_fwhm_1pc": nth_fwhm_1pc,
"depth_nth_fwhm_power": depth_nth_fwhm_power,
"baseline_absorption_norm": [0.0],
}
# add derived quantities to sim_params
for key in model.cloud_deterministics:
if key not in sim_params.keys():
sim_params[key] = model.model[key].eval(sim_params, on_unused_input="ignore")
# Evaluate and save simulated observation
emission = model.model["emission"].eval(sim_params, on_unused_input="ignore")
absorption = model.model["absorption"].eval(sim_params, on_unused_input="ignore")
data = {
"emission": SpecData(
emission_axis,
emission,
rms_emission,
xlabel=r"$V_{\rm LSR}$ (km s$^{-1}$)",
ylabel=r"$T_B$ (K)",
),
"absorption": SpecData(
absorption_axis,
absorption,
rms_absorption,
xlabel=r"$V_{\rm LSR}$ (km s$^{-1}$)",
ylabel=r"1 - exp(-$\tau$)",
),
}
tspin [ 49.9920589 297.73994712 2795.52422645]
fwhm2_nonthermal [ 7.61461575 21.12711044 215.71459099]
fwhm2_thermal [ 2.2876605 13.725963 228.76605 ]
fwhm2 [ 9.90227625 34.85307344 444.48064099]
fwhm2_thermal_fraction [0.2310237 0.3938236 0.5146817]
log10_Pth [2.94897 2.47712125 3.19897 ]
log10_NHI [20.438321 19.88729101 20.46647225]
tau_total [3.01140471 0.14216839 0.05745901]
wt_ff_tkin [0.09 0.00333333 0.0002 ]
[5]:
sim_params
[5]:
{'wt_ff_tkin': array([0.09 , 0.00333333, 0.0002 ]),
'absorption_weight': array([0.9, 0.8, 1. ]),
'filling_factor': array([0.2, 0.8, 1. ]),
'log10_NHI': array([20.438321 , 19.88729101, 20.46647225]),
'tau_total': array([3.01140471, 0.14216839, 0.05745901]),
'tspin': array([ 49.9920589 , 297.73994712, 2795.52422645]),
'fwhm2': array([ 9.90227625, 34.85307344, 444.48064099]),
'fwhm2_thermal_fraction': array([0.2310237, 0.3938236, 0.5146817]),
'velocity': array([-5., 5., 10.]),
'log10_n_alpha': array([-5.5, -6. , -6.5]),
'nth_fwhm_1pc': array([2. , 1.75, 1.5 ]),
'depth_nth_fwhm_power': array([0.2, 0.3, 0.4]),
'baseline_absorption_norm': [0.0],
'fwhm2_thermal': array([ 2.2876605, 13.725963 , 228.76605 ]),
'tkin': array([ 50., 300., 5000.]),
'fwhm2_nonthermal': array([ 7.61461575, 21.12711044, 215.71459099]),
'log10_depth': array([0.69897 , 1.39794001, 2.47712125]),
'log10_nHI': array([ 1.25, 0. , -0.5 ]),
'log10_Pth': array([2.94897 , 2.47712125, 3.19897 ]),
'log10_Pnth': array([4.95888799, 4.1520801 , 4.66111952]),
'log10_Ptot': array([4.96311227, 4.16116407, 4.67585106])}
[6]:

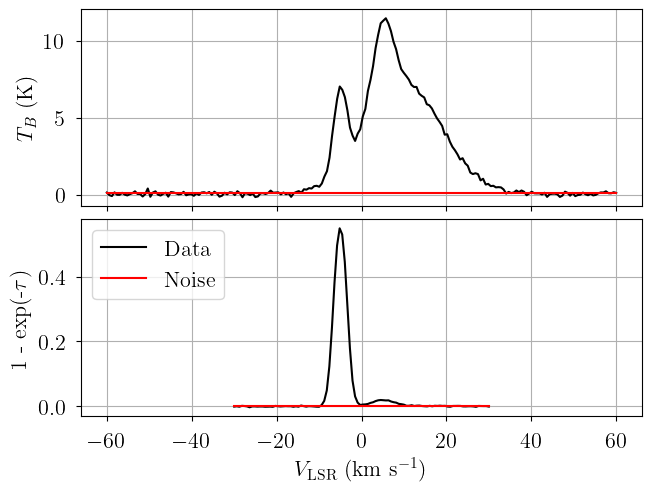

# Plot data
fig, axes = plt.subplots(2, layout="constrained", sharex=True)
axes[0].plot(data["emission"].spectral, data["emission"].brightness, "k-")
axes[0].plot(data["emission"].spectral, data["emission"].noise, "r-")
axes[1].plot(data["absorption"].spectral, data["absorption"].brightness, "k-", label="Data")
axes[1].plot(data["absorption"].spectral, data["absorption"].noise, "r-", label="Noise")
axes[1].set_xlabel(data["emission"].xlabel)
axes[0].set_ylabel(data["emission"].ylabel)
axes[1].set_ylabel(data["absorption"].ylabel)
_ = axes[1].legend(loc="upper left")
Model Definition
[8]:
# Initialize and define the model
model = EmissionAbsorptionPhysicalModel(
data,
n_clouds=n_clouds,
baseline_degree=baseline_degree,
bg_temp = 3.77, # assumed background temperature (K)
seed=1234,
verbose=True
)
model.add_priors(
prior_filling_factor=[2.0, 1.0], # filling factor prior shape
prior_ff_NHI=1.0e21, # filling factor * column density prior width (cm-2)
prior_fwhm2_thermal_fraction=[2.0, 2.0], # thermal FWHM^2 fraction prior shape
prior_sigma_log10_NHI=0.5, # log-normal column density distribution width
prior_fwhm2=200.0, # FWHM^2 prior width (km2 s-2)
prior_velocity=[-20.0, 20.0], # lower and upper limit of velocity prior (km/s)
prior_log10_n_alpha=[-6.0, 1.0], # log10(n_alpha) prior width (cm-3)
prior_nth_fwhm_1pc=[1.75, 0.25], # non-thermal FWHM at 1 pc prior mean and width (km s-1)
prior_depth_nth_fwhm_power=[0.3, 0.1], # non-thermal FWHM vs. depth power prior mean and width
prior_fwhm_L=None, # Assume Gaussian line profile
prior_baseline_coeffs=None, # Default baseline priors
)
model.add_likelihood()
[9]:
# Plot model graph
model.graph().render("emission_absorption_physical_model", format="png")
model.graph()
[9]:
[10]:
# model string representation
print(model.model.str_repr())
baseline_emission_norm ~ Normal(0, 1)
baseline_absorption_norm ~ Normal(0, 1)
fwhm2_norm ~ Gamma(0.5, f())
velocity_norm ~ Beta(2, 2)
log10_n_alpha_norm ~ Normal(0, 1)
nth_fwhm_1pc ~ TruncatedNormal(1.75, 0.25, 0, inf)
depth_nth_fwhm_power ~ InverseGamma(11, 3)
ff_NHI_norm ~ HalfNormal(0, 1)
fwhm2_thermal_fraction ~ Beta(2, 2)
filling_factor ~ Beta(2, 1)
wt_ff_tkin ~ LogNormal(f(fwhm2_thermal_fraction, fwhm2_norm), 1.15)
fwhm2 ~ Deterministic(f(fwhm2_norm))
velocity ~ Deterministic(f(velocity_norm))
log10_n_alpha ~ Deterministic(f(log10_n_alpha_norm))
fwhm2_thermal ~ Deterministic(f(fwhm2_thermal_fraction, fwhm2_norm))
tkin ~ Deterministic(f(fwhm2_thermal_fraction, fwhm2_norm))
fwhm2_nonthermal ~ Deterministic(f(fwhm2_thermal_fraction, fwhm2_norm))
log10_depth ~ Deterministic(f(depth_nth_fwhm_power, nth_fwhm_1pc, fwhm2_thermal_fraction, fwhm2_norm))
log10_NHI ~ Deterministic(f(filling_factor, ff_NHI_norm))
log10_nHI ~ Deterministic(f(filling_factor, depth_nth_fwhm_power, nth_fwhm_1pc, ff_NHI_norm, fwhm2_thermal_fraction, fwhm2_norm))
tspin ~ Deterministic(f(fwhm2_thermal_fraction, log10_n_alpha_norm, fwhm2_norm, filling_factor, depth_nth_fwhm_power, nth_fwhm_1pc, ff_NHI_norm))
absorption_weight ~ Deterministic(f(filling_factor, wt_ff_tkin, fwhm2_thermal_fraction, fwhm2_norm))
tau_total ~ Deterministic(f(filling_factor, ff_NHI_norm, wt_ff_tkin, fwhm2_thermal_fraction, log10_n_alpha_norm, fwhm2_norm, depth_nth_fwhm_power, nth_fwhm_1pc))
log10_Pth ~ Deterministic(f(fwhm2_thermal_fraction, filling_factor, depth_nth_fwhm_power, nth_fwhm_1pc, ff_NHI_norm, fwhm2_norm))
log10_Pnth ~ Deterministic(f(fwhm2_thermal_fraction, fwhm2_norm, filling_factor, depth_nth_fwhm_power, nth_fwhm_1pc, ff_NHI_norm))
log10_Ptot ~ Deterministic(f(fwhm2_thermal_fraction, fwhm2_norm, filling_factor, depth_nth_fwhm_power, nth_fwhm_1pc, ff_NHI_norm))
absorption ~ Normal(f(baseline_absorption_norm, filling_factor, wt_ff_tkin, ff_NHI_norm, fwhm2_thermal_fraction, velocity_norm, fwhm2_norm, log10_n_alpha_norm, depth_nth_fwhm_power, nth_fwhm_1pc), <constant>)
emission ~ Normal(f(filling_factor, baseline_emission_norm, fwhm2_thermal_fraction, ff_NHI_norm, wt_ff_tkin, log10_n_alpha_norm, fwhm2_norm, velocity_norm, depth_nth_fwhm_power, nth_fwhm_1pc), <constant>)
[11]:

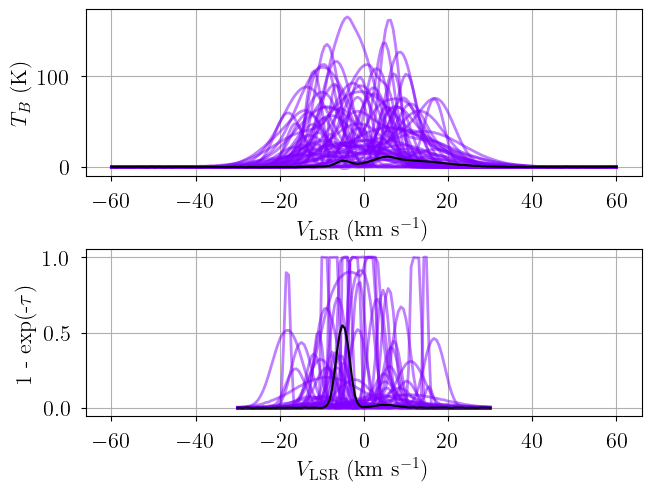

from bayes_spec.plots import plot_predictive
# prior predictive check
prior = model.sample_prior_predictive(
samples=1000, # prior predictive samples
)
axes = plot_predictive(model.data, prior.prior_predictive.sel(draw=slice(None, None, 20)))
axes.ravel()[1].sharex(axes.ravel()[0])
Sampling: [absorption, baseline_absorption_norm, baseline_emission_norm, depth_nth_fwhm_power, emission, ff_NHI_norm, filling_factor, fwhm2_norm, fwhm2_thermal_fraction, log10_n_alpha_norm, nth_fwhm_1pc, velocity_norm, wt_ff_tkin]
[12]:
print(model.cloud_freeRVs)
print(model.cloud_deterministics)
['fwhm2_norm', 'velocity_norm', 'log10_n_alpha_norm', 'nth_fwhm_1pc', 'depth_nth_fwhm_power', 'ff_NHI_norm', 'fwhm2_thermal_fraction', 'filling_factor', 'wt_ff_tkin']
['fwhm2', 'velocity', 'log10_n_alpha', 'fwhm2_thermal', 'tkin', 'fwhm2_nonthermal', 'log10_depth', 'log10_NHI', 'log10_nHI', 'tspin', 'absorption_weight', 'tau_total', 'log10_Pth', 'log10_Pnth', 'log10_Ptot']
[13]:

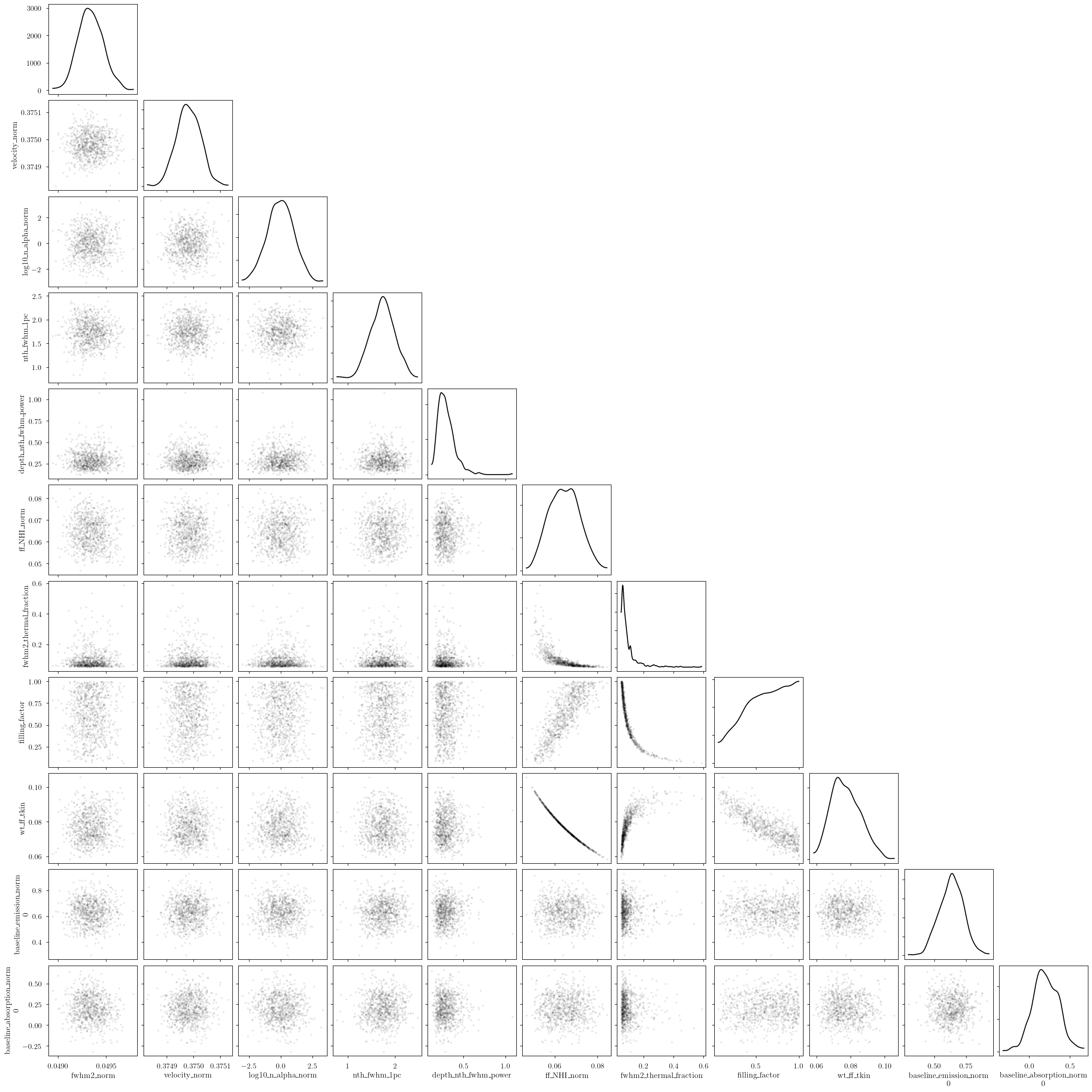

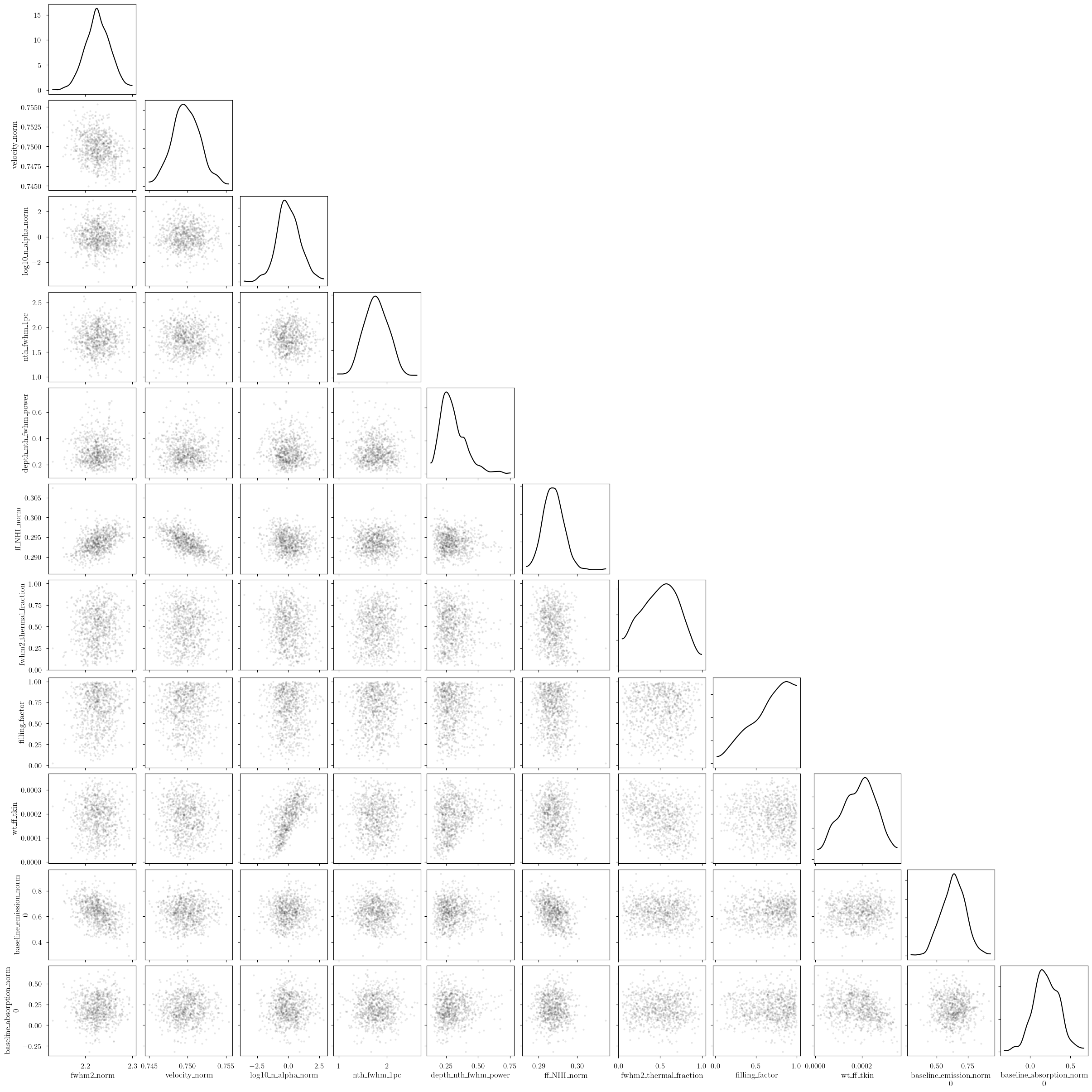

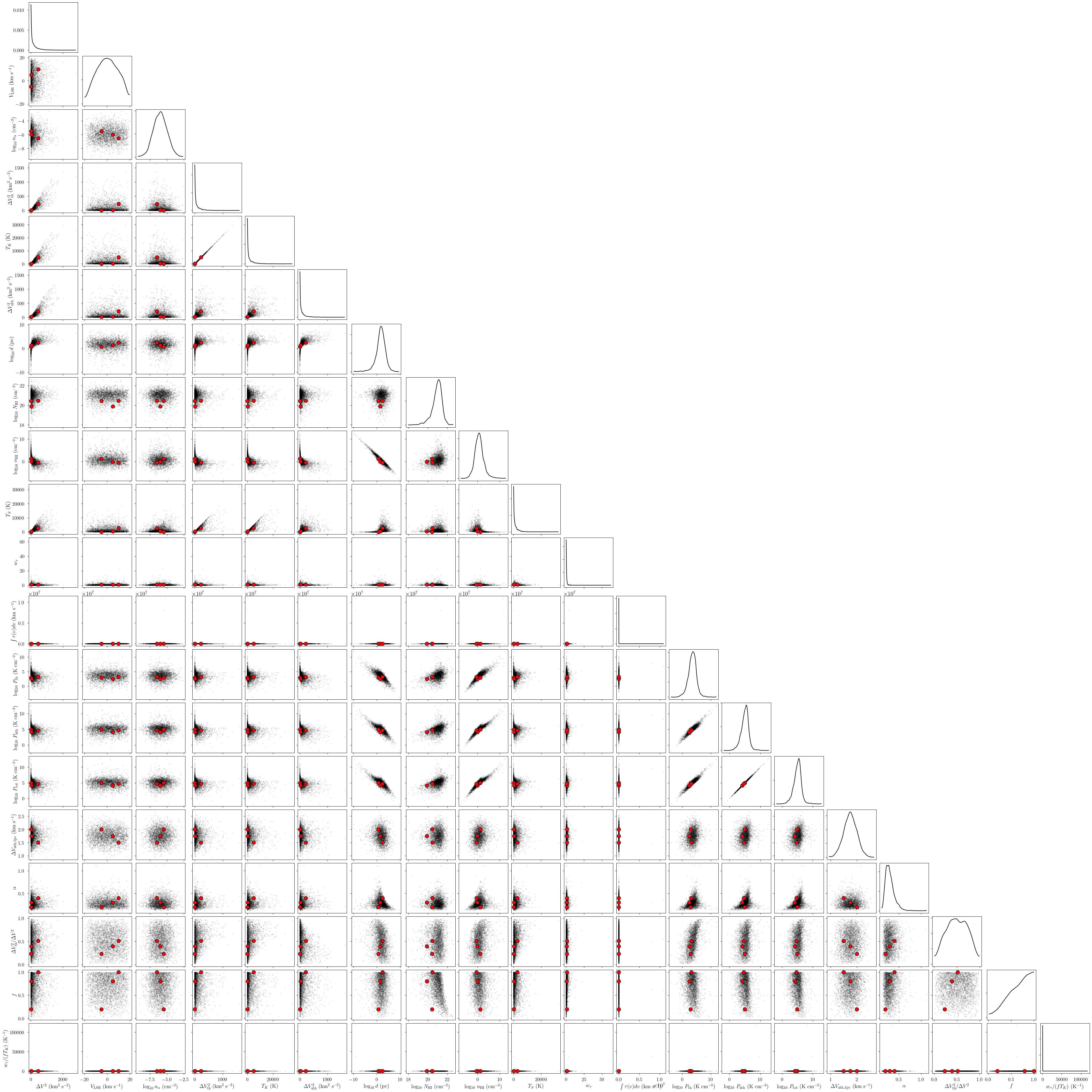

from bayes_spec.plots import plot_pair
var_names = model.cloud_deterministics + [p for p in model.cloud_freeRVs if "_norm" not in p]
print(var_names)
_ = plot_pair(
prior.prior, # samples
var_names, # var_names to plot
combine_dims=["cloud"], # concatenate clouds
labeller=model.labeller, # label manager
kind="scatter", # plot type
reference_values=sim_params, # truths
)
['fwhm2', 'velocity', 'log10_n_alpha', 'fwhm2_thermal', 'tkin', 'fwhm2_nonthermal', 'log10_depth', 'log10_NHI', 'log10_nHI', 'tspin', 'absorption_weight', 'tau_total', 'log10_Pth', 'log10_Pnth', 'log10_Ptot', 'nth_fwhm_1pc', 'depth_nth_fwhm_power', 'fwhm2_thermal_fraction', 'filling_factor', 'wt_ff_tkin']
Variational Inference
[14]:
start = time.time()
model.fit(
n = 1_000_000, # maximum number of VI iterations
draws = 1_000, # number of posterior samples
rel_tolerance = 0.005, # VI relative convergence threshold
abs_tolerance = 0.005, # VI absolute convergence threshold
learning_rate = 0.001, # VI learning rate
start = {"velocity_norm": np.linspace(0.1, 0.9, model.n_clouds)},
)
end = time.time()
print(f"Runtime: {(end-start)/60.0:.2f} minutes")
Convergence achieved at 101700
Interrupted at 101,699 [10%]: Average Loss = 2.6359e+05
Adding log-likelihood to trace
Runtime: 2.09 minutes
[15]:
pm.summary(model.trace.posterior)
arviz - WARNING - Shape validation failed: input_shape: (1, 1000), minimum_shape: (chains=2, draws=4)
[15]:
| mean | sd | hdi_3% | hdi_97% | mcse_mean | mcse_sd | ess_bulk | ess_tail | r_hat | |
|---|---|---|---|---|---|---|---|---|---|
| baseline_emission_norm[0] | 0.635 | 0.073 | 0.503 | 0.770 | 0.002 | 0.002 | 960.0 | 1026.0 | NaN |
| baseline_absorption_norm[0] | 0.218 | 0.102 | 0.038 | 0.411 | 0.003 | 0.002 | 1023.0 | 1033.0 | NaN |
| log10_n_alpha_norm[0] | 0.986 | 0.472 | 0.075 | 1.813 | 0.016 | 0.011 | 859.0 | 880.0 | NaN |
| log10_n_alpha_norm[1] | -2.554 | 0.001 | -2.556 | -2.553 | 0.000 | 0.000 | 922.0 | 979.0 | NaN |
| log10_n_alpha_norm[2] | -2.499 | 0.017 | -2.527 | -2.466 | 0.001 | 0.000 | 981.0 | 983.0 | NaN |
| fwhm2_norm[0] | 2.222 | 0.014 | 2.191 | 2.246 | 0.000 | 0.000 | 988.0 | 1031.0 | NaN |
| fwhm2_norm[1] | 0.049 | 0.000 | 0.049 | 0.049 | 0.000 | 0.000 | 832.0 | 859.0 | NaN |
| fwhm2_norm[2] | 0.171 | 0.002 | 0.167 | 0.174 | 0.000 | 0.000 | 865.0 | 984.0 | NaN |
| velocity_norm[0] | 0.750 | 0.001 | 0.749 | 0.752 | 0.000 | 0.000 | 986.0 | 1014.0 | NaN |
| velocity_norm[1] | 0.375 | 0.000 | 0.375 | 0.375 | 0.000 | 0.000 | 971.0 | 944.0 | NaN |
| velocity_norm[2] | 0.626 | 0.001 | 0.624 | 0.627 | 0.000 | 0.000 | 931.0 | 741.0 | NaN |
| nth_fwhm_1pc[0] | 1.745 | 0.252 | 1.295 | 2.223 | 0.008 | 0.007 | 1103.0 | 752.0 | NaN |
| nth_fwhm_1pc[1] | 0.092 | 0.021 | 0.057 | 0.132 | 0.001 | 0.001 | 971.0 | 845.0 | NaN |
| nth_fwhm_1pc[2] | 1.205 | 0.016 | 1.177 | 1.237 | 0.001 | 0.000 | 1018.0 | 1013.0 | NaN |
| depth_nth_fwhm_power[0] | 0.316 | 0.101 | 0.148 | 0.501 | 0.003 | 0.003 | 890.0 | 944.0 | NaN |
| depth_nth_fwhm_power[1] | 0.155 | 0.013 | 0.131 | 0.178 | 0.000 | 0.000 | 877.0 | 1023.0 | NaN |
| depth_nth_fwhm_power[2] | 0.148 | 0.002 | 0.145 | 0.151 | 0.000 | 0.000 | 999.0 | 983.0 | NaN |
| ff_NHI_norm[0] | 0.293 | 0.001 | 0.292 | 0.295 | 0.000 | 0.000 | 846.0 | 794.0 | NaN |
| ff_NHI_norm[1] | 0.053 | 0.000 | 0.053 | 0.053 | 0.000 | 0.000 | 788.0 | 940.0 | NaN |
| ff_NHI_norm[2] | 0.063 | 0.000 | 0.062 | 0.064 | 0.000 | 0.000 | 982.0 | 810.0 | NaN |
| fwhm2_thermal_fraction[0] | 0.444 | 0.160 | 0.133 | 0.717 | 0.006 | 0.003 | 832.0 | 936.0 | NaN |
| fwhm2_thermal_fraction[1] | 0.831 | 0.001 | 0.829 | 0.833 | 0.000 | 0.000 | 1026.0 | 909.0 | NaN |
| fwhm2_thermal_fraction[2] | 0.524 | 0.028 | 0.475 | 0.577 | 0.001 | 0.001 | 1037.0 | 865.0 | NaN |
| filling_factor[0] | 0.702 | 0.217 | 0.301 | 0.995 | 0.007 | 0.005 | 854.0 | 905.0 | NaN |
| filling_factor[1] | 0.113 | 0.003 | 0.107 | 0.118 | 0.000 | 0.000 | 909.0 | 900.0 | NaN |
| filling_factor[2] | 0.907 | 0.058 | 0.792 | 0.988 | 0.002 | 0.002 | 782.0 | 944.0 | NaN |
| wt_ff_tkin[0] | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 1033.0 | 907.0 | NaN |
| wt_ff_tkin[1] | 0.039 | 0.000 | 0.039 | 0.039 | 0.000 | 0.000 | 969.0 | 781.0 | NaN |
| wt_ff_tkin[2] | 0.001 | 0.000 | 0.001 | 0.001 | 0.000 | 0.000 | 973.0 | 952.0 | NaN |
| fwhm2[0] | 444.418 | 2.798 | 438.110 | 449.103 | 0.089 | 0.071 | 988.0 | 1031.0 | NaN |
| fwhm2[1] | 9.872 | 0.013 | 9.846 | 9.896 | 0.000 | 0.000 | 832.0 | 859.0 | NaN |
| fwhm2[2] | 34.133 | 0.384 | 33.408 | 34.824 | 0.013 | 0.008 | 865.0 | 984.0 | NaN |
| velocity[0] | 10.009 | 0.035 | 9.943 | 10.071 | 0.001 | 0.001 | 986.0 | 1014.0 | NaN |
| velocity[1] | -5.001 | 0.002 | -5.005 | -4.998 | 0.000 | 0.000 | 971.0 | 944.0 | NaN |
| velocity[2] | 5.020 | 0.024 | 4.977 | 5.065 | 0.001 | 0.001 | 931.0 | 741.0 | NaN |
| log10_n_alpha[0] | -5.014 | 0.472 | -5.925 | -4.187 | 0.016 | 0.011 | 859.0 | 880.0 | NaN |
| log10_n_alpha[1] | -8.554 | 0.001 | -8.556 | -8.553 | 0.000 | 0.000 | 922.0 | 979.0 | NaN |
| log10_n_alpha[2] | -8.499 | 0.017 | -8.527 | -8.466 | 0.001 | 0.000 | 981.0 | 983.0 | NaN |
| fwhm2_thermal[0] | 197.143 | 71.289 | 59.451 | 319.743 | 2.488 | 1.434 | 828.0 | 936.0 | NaN |
| fwhm2_thermal[1] | 8.203 | 0.016 | 8.175 | 8.235 | 0.001 | 0.000 | 924.0 | 717.0 | NaN |
| fwhm2_thermal[2] | 17.899 | 0.971 | 16.026 | 19.702 | 0.031 | 0.022 | 953.0 | 905.0 | NaN |
| tkin[0] | 4308.829 | 1558.129 | 1299.384 | 6988.426 | 54.369 | 31.347 | 828.0 | 936.0 | NaN |
| tkin[1] | 179.285 | 0.345 | 178.673 | 179.978 | 0.011 | 0.007 | 924.0 | 717.0 | NaN |
| tkin[2] | 391.200 | 21.216 | 350.266 | 430.624 | 0.688 | 0.489 | 953.0 | 905.0 | NaN |
| fwhm2_nonthermal[0] | 247.275 | 71.358 | 127.325 | 387.729 | 2.474 | 1.454 | 839.0 | 937.0 | NaN |
| fwhm2_nonthermal[1] | 1.669 | 0.012 | 1.646 | 1.691 | 0.000 | 0.000 | 1018.0 | 1013.0 | NaN |
| fwhm2_nonthermal[2] | 16.235 | 0.958 | 14.517 | 18.031 | 0.028 | 0.022 | 1130.0 | 816.0 | NaN |
| log10_depth[0] | 3.312 | 1.104 | 1.433 | 5.167 | 0.038 | 0.035 | 860.0 | 983.0 | NaN |
| log10_depth[1] | 7.527 | 0.930 | 5.746 | 9.187 | 0.031 | 0.021 | 922.0 | 823.0 | NaN |
| log10_depth[2] | 3.550 | 0.103 | 3.363 | 3.742 | 0.003 | 0.002 | 1088.0 | 1026.0 | NaN |
| log10_NHI[0] | 20.651 | 0.186 | 20.468 | 20.988 | 0.006 | 0.009 | 854.0 | 900.0 | NaN |
| log10_NHI[1] | 20.674 | 0.011 | 20.653 | 20.696 | 0.000 | 0.000 | 893.0 | 898.0 | NaN |
| log10_NHI[2] | 19.842 | 0.030 | 19.804 | 19.904 | 0.001 | 0.001 | 803.0 | 850.0 | NaN |
| log10_nHI[0] | -1.150 | 1.125 | -3.245 | 0.664 | 0.040 | 0.035 | 796.0 | 944.0 | NaN |
| log10_nHI[1] | -5.342 | 0.930 | -6.999 | -3.552 | 0.031 | 0.021 | 922.0 | 791.0 | NaN |
| log10_nHI[2] | -2.198 | 0.107 | -2.390 | -1.998 | 0.003 | 0.002 | 1088.0 | 942.0 | NaN |
| tspin[0] | 3988.260 | 1390.017 | 1321.480 | 6421.729 | 50.106 | 28.833 | 782.0 | 855.0 | NaN |
| tspin[1] | 75.206 | 0.139 | 74.985 | 75.412 | 0.005 | 0.012 | 836.0 | 869.0 | NaN |
| tspin[2] | 101.201 | 5.816 | 91.892 | 112.518 | 0.176 | 0.179 | 1087.0 | 890.0 | NaN |
| absorption_weight[0] | 0.730 | 0.363 | 0.098 | 1.376 | 0.011 | 0.008 | 1018.0 | 1023.0 | NaN |
| absorption_weight[1] | 0.787 | 0.021 | 0.749 | 0.826 | 0.001 | 0.000 | 899.0 | 901.0 | NaN |
| absorption_weight[2] | 0.308 | 0.027 | 0.262 | 0.364 | 0.001 | 0.001 | 965.0 | 932.0 | NaN |
| tau_total[0] | 0.083 | 0.103 | 0.024 | 0.183 | 0.003 | 0.027 | 1004.0 | 942.0 | NaN |
| tau_total[1] | 3.446 | 0.091 | 3.266 | 3.611 | 0.003 | 0.002 | 893.0 | 898.0 | NaN |
| tau_total[2] | 0.378 | 0.030 | 0.326 | 0.435 | 0.001 | 0.001 | 866.0 | 984.0 | NaN |
| log10_Pth[0] | 2.450 | 1.170 | 0.417 | 4.466 | 0.043 | 0.035 | 721.0 | 982.0 | NaN |
| log10_Pth[1] | -3.089 | 0.930 | -4.745 | -1.298 | 0.031 | 0.021 | 922.0 | 791.0 | NaN |
| log10_Pth[2] | 0.394 | 0.125 | 0.148 | 0.610 | 0.004 | 0.003 | 1126.0 | 850.0 | NaN |
| log10_Pnth[0] | 4.050 | 1.108 | 1.952 | 5.757 | 0.038 | 0.035 | 849.0 | 944.0 | NaN |
| log10_Pnth[1] | -2.292 | 0.930 | -3.952 | -0.508 | 0.031 | 0.021 | 921.0 | 791.0 | NaN |
| log10_Pnth[2] | 1.839 | 0.087 | 1.673 | 1.992 | 0.003 | 0.002 | 1061.0 | 945.0 | NaN |
| log10_Ptot[0] | 4.063 | 1.108 | 1.955 | 5.781 | 0.038 | 0.035 | 846.0 | 944.0 | NaN |
| log10_Ptot[1] | -2.228 | 0.930 | -3.886 | -0.443 | 0.031 | 0.021 | 921.0 | 791.0 | NaN |
| log10_Ptot[2] | 1.854 | 0.088 | 1.686 | 2.009 | 0.003 | 0.002 | 1062.0 | 945.0 | NaN |
[16]:

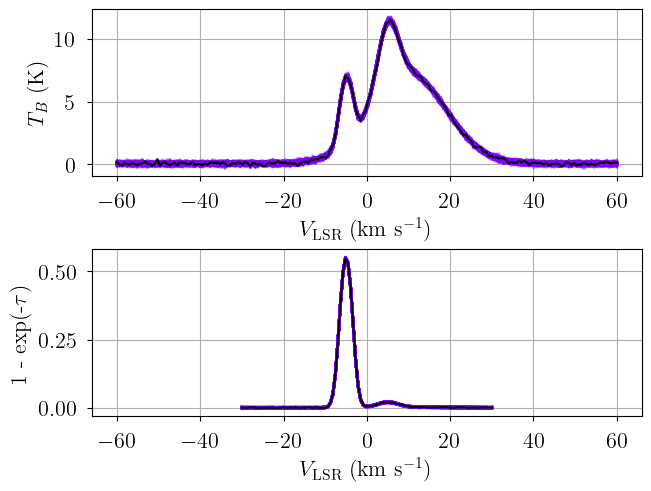

posterior = model.sample_posterior_predictive(
thin=10, # keep one in {thin} posterior samples
)
axes = plot_predictive(model.data, posterior.posterior_predictive)
axes.ravel()[1].sharex(axes.ravel()[0])
Sampling: [absorption, emission]
Posterior Sampling: MCMC
We can sample from the posterior distribution using MCMC.
[17]:
start = time.time()
model.sample(
init="advi+adapt_diag", # initialization strategy
tune=1000, # tuning samples
draws=1000, # posterior samples
chains=8, # number of independent chains
cores=8, # number of parallel chains
init_kwargs={
"rel_tolerance": 0.005,
"abs_tolerance": 0.005,
"learning_rate": 0.001,
"start": {"velocity_norm": np.linspace(0.1, 0.9, model.n_clouds)},
}, # VI initialization arguments
nuts_kwargs={"target_accept": 0.9}, # NUTS arguments
)
end = time.time()
print(f"Runtime: {(end-start)/60.0:.2f} minutes")
Initializing NUTS using custom advi+adapt_diag strategy
Convergence achieved at 101700
Interrupted at 101,699 [10%]: Average Loss = 2.6359e+05
Multiprocess sampling (8 chains in 8 jobs)
NUTS: [baseline_emission_norm, baseline_absorption_norm, fwhm2_norm, velocity_norm, log10_n_alpha_norm, nth_fwhm_1pc, depth_nth_fwhm_power, ff_NHI_norm, fwhm2_thermal_fraction, filling_factor, wt_ff_tkin]
Sampling 8 chains for 1_000 tune and 1_000 draw iterations (8_000 + 8_000 draws total) took 216 seconds.
Adding log-likelihood to trace
Runtime: 5.99 minutes
[18]:
model.solve(
init_params="random_from_data", # GMM initialization strategy
n_init=10, # number of GMM initilizations
max_iter=1_000, # maximum number of GMM iterations
kl_div_threshold=0.1, # covergence threshold
)
GMM converged to unique solution
Check that the effective sample sizes are large and the covergence statistic r_hat is close to 1! If not, you may have to increase the number of tuning steps (tune=2000) or the NUTS acceptance rate (target_accept=0.9).
[19]:

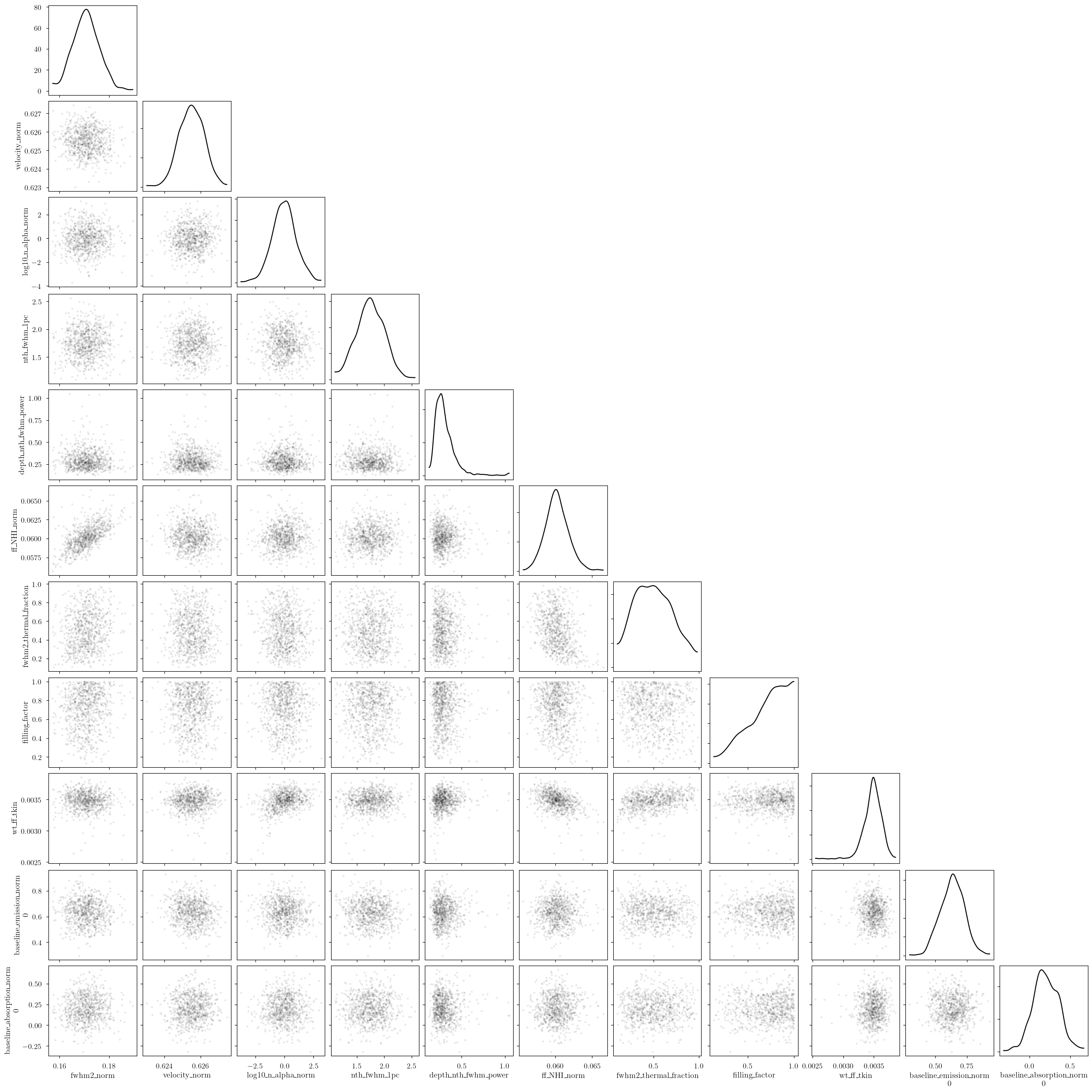

print("solutions:", model.solutions)
az.summary(model.trace["solution_0"])
# this also works: az.summary(model.trace.solution_0)
solutions: [0]
[19]:
| mean | sd | hdi_3% | hdi_97% | mcse_mean | mcse_sd | ess_bulk | ess_tail | r_hat | |
|---|---|---|---|---|---|---|---|---|---|
| baseline_emission_norm[0] | 0.632 | 0.093 | 0.454 | 0.802 | 0.001 | 0.001 | 10573.0 | 6120.0 | 1.0 |
| baseline_absorption_norm[0] | 0.206 | 0.151 | -0.066 | 0.493 | 0.001 | 0.002 | 12419.0 | 5831.0 | 1.0 |
| log10_n_alpha_norm[0] | -0.014 | 0.938 | -1.653 | 1.903 | 0.011 | 0.010 | 6555.0 | 5872.0 | 1.0 |
| log10_n_alpha_norm[1] | 0.002 | 1.013 | -1.810 | 2.047 | 0.008 | 0.013 | 15903.0 | 5365.0 | 1.0 |
| log10_n_alpha_norm[2] | -0.005 | 1.003 | -1.802 | 1.987 | 0.011 | 0.013 | 8332.0 | 4557.0 | 1.0 |
| fwhm2_norm[0] | 2.227 | 0.026 | 2.179 | 2.277 | 0.000 | 0.000 | 7591.0 | 6015.0 | 1.0 |
| fwhm2_norm[1] | 0.049 | 0.000 | 0.049 | 0.050 | 0.000 | 0.000 | 13524.0 | 5739.0 | 1.0 |
| fwhm2_norm[2] | 0.171 | 0.005 | 0.161 | 0.181 | 0.000 | 0.000 | 4797.0 | 5719.0 | 1.0 |
| velocity_norm[0] | 0.750 | 0.002 | 0.746 | 0.753 | 0.000 | 0.000 | 4193.0 | 5280.0 | 1.0 |
| velocity_norm[1] | 0.375 | 0.000 | 0.375 | 0.375 | 0.000 | 0.000 | 14306.0 | 6017.0 | 1.0 |
| velocity_norm[2] | 0.626 | 0.001 | 0.624 | 0.627 | 0.000 | 0.000 | 9169.0 | 6821.0 | 1.0 |
| nth_fwhm_1pc[0] | 1.749 | 0.251 | 1.311 | 2.245 | 0.002 | 0.003 | 13461.0 | 4753.0 | 1.0 |
| nth_fwhm_1pc[1] | 1.750 | 0.256 | 1.282 | 2.234 | 0.002 | 0.003 | 14814.0 | 4738.0 | 1.0 |
| nth_fwhm_1pc[2] | 1.753 | 0.250 | 1.295 | 2.229 | 0.002 | 0.003 | 12785.0 | 5923.0 | 1.0 |
| depth_nth_fwhm_power[0] | 0.301 | 0.096 | 0.151 | 0.479 | 0.001 | 0.002 | 9668.0 | 5919.0 | 1.0 |
| depth_nth_fwhm_power[1] | 0.300 | 0.100 | 0.140 | 0.479 | 0.001 | 0.002 | 13446.0 | 5017.0 | 1.0 |
| depth_nth_fwhm_power[2] | 0.302 | 0.106 | 0.156 | 0.500 | 0.001 | 0.004 | 9994.0 | 5095.0 | 1.0 |
| ff_NHI_norm[0] | 0.294 | 0.003 | 0.289 | 0.299 | 0.000 | 0.000 | 3409.0 | 3438.0 | 1.0 |
| ff_NHI_norm[1] | 0.064 | 0.007 | 0.052 | 0.077 | 0.000 | 0.000 | 3241.0 | 5011.0 | 1.0 |
| ff_NHI_norm[2] | 0.060 | 0.002 | 0.057 | 0.063 | 0.000 | 0.000 | 4061.0 | 4727.0 | 1.0 |
| fwhm2_thermal_fraction[0] | 0.486 | 0.214 | 0.103 | 0.858 | 0.002 | 0.002 | 10281.0 | 5371.0 | 1.0 |
| fwhm2_thermal_fraction[1] | 0.099 | 0.061 | 0.050 | 0.195 | 0.001 | 0.002 | 3375.0 | 4162.0 | 1.0 |
| fwhm2_thermal_fraction[2] | 0.493 | 0.202 | 0.155 | 0.869 | 0.002 | 0.002 | 9290.0 | 5340.0 | 1.0 |
| filling_factor[0] | 0.670 | 0.232 | 0.252 | 1.000 | 0.002 | 0.002 | 9123.0 | 4768.0 | 1.0 |
| filling_factor[1] | 0.608 | 0.242 | 0.210 | 0.999 | 0.004 | 0.002 | 3390.0 | 4377.0 | 1.0 |
| filling_factor[2] | 0.709 | 0.209 | 0.331 | 1.000 | 0.002 | 0.002 | 9885.0 | 3941.0 | 1.0 |
| wt_ff_tkin[0] | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 5141.0 | 4029.0 | 1.0 |
| wt_ff_tkin[1] | 0.078 | 0.008 | 0.063 | 0.093 | 0.000 | 0.000 | 3239.0 | 5043.0 | 1.0 |
| wt_ff_tkin[2] | 0.003 | 0.000 | 0.003 | 0.004 | 0.000 | 0.000 | 5549.0 | 3339.0 | 1.0 |
| fwhm2[0] | 445.337 | 5.218 | 435.831 | 455.311 | 0.060 | 0.054 | 7591.0 | 6015.0 | 1.0 |
| fwhm2[1] | 9.869 | 0.026 | 9.822 | 9.918 | 0.000 | 0.000 | 13524.0 | 5739.0 | 1.0 |
| fwhm2[2] | 34.143 | 1.072 | 32.152 | 36.141 | 0.015 | 0.010 | 4797.0 | 5719.0 | 1.0 |
| velocity[0] | 9.991 | 0.074 | 9.854 | 10.131 | 0.001 | 0.001 | 4193.0 | 5280.0 | 1.0 |
| velocity[1] | -5.001 | 0.002 | -5.004 | -4.997 | 0.000 | 0.000 | 14306.0 | 6017.0 | 1.0 |
| velocity[2] | 5.021 | 0.029 | 4.968 | 5.075 | 0.000 | 0.000 | 9169.0 | 6821.0 | 1.0 |
| log10_n_alpha[0] | -6.014 | 0.938 | -7.653 | -4.097 | 0.011 | 0.010 | 6555.0 | 5872.0 | 1.0 |
| log10_n_alpha[1] | -5.998 | 1.013 | -7.810 | -3.953 | 0.008 | 0.013 | 15903.0 | 5365.0 | 1.0 |
| log10_n_alpha[2] | -6.005 | 1.003 | -7.802 | -4.013 | 0.011 | 0.013 | 8332.0 | 4557.0 | 1.0 |
| fwhm2_thermal[0] | 216.621 | 95.502 | 45.590 | 382.470 | 0.927 | 0.900 | 10364.0 | 5447.0 | 1.0 |
| fwhm2_thermal[1] | 0.975 | 0.600 | 0.500 | 1.934 | 0.011 | 0.023 | 3374.0 | 4162.0 | 1.0 |
| fwhm2_thermal[2] | 16.843 | 6.974 | 5.094 | 29.648 | 0.071 | 0.069 | 9506.0 | 5186.0 | 1.0 |
| tkin[0] | 4734.544 | 2087.323 | 996.424 | 8359.422 | 20.254 | 19.672 | 10364.0 | 5447.0 | 1.0 |
| tkin[1] | 21.320 | 13.110 | 10.924 | 42.272 | 0.234 | 0.502 | 3374.0 | 4162.0 | 1.0 |
| tkin[2] | 368.126 | 152.436 | 111.334 | 648.009 | 1.550 | 1.517 | 9506.0 | 5186.0 | 1.0 |
| fwhm2_nonthermal[0] | 228.716 | 95.238 | 63.970 | 399.158 | 0.926 | 0.893 | 10296.0 | 5535.0 | 1.0 |
| fwhm2_nonthermal[1] | 8.894 | 0.600 | 7.936 | 9.393 | 0.011 | 0.023 | 3387.0 | 4196.0 | 1.0 |
| fwhm2_nonthermal[2] | 17.300 | 6.849 | 4.661 | 28.882 | 0.072 | 0.065 | 8852.0 | 5429.0 | 1.0 |
| log10_depth[0] | 3.323 | 1.102 | 1.427 | 5.426 | 0.011 | 0.015 | 9036.0 | 6257.0 | 1.0 |
| log10_depth[1] | 0.864 | 0.369 | 0.225 | 1.519 | 0.003 | 0.006 | 12546.0 | 5200.0 | 1.0 |
| log10_depth[2] | 1.294 | 0.642 | 0.131 | 2.539 | 0.008 | 0.010 | 7301.0 | 5212.0 | 1.0 |
| log10_NHI[0] | 20.681 | 0.209 | 20.462 | 21.068 | 0.003 | 0.005 | 9115.0 | 4666.0 | 1.0 |
| log10_NHI[1] | 20.069 | 0.187 | 19.813 | 20.429 | 0.003 | 0.003 | 3626.0 | 4506.0 | 1.0 |
| log10_NHI[2] | 19.955 | 0.165 | 19.763 | 20.269 | 0.002 | 0.003 | 9783.0 | 4024.0 | 1.0 |
| log10_nHI[0] | -1.132 | 1.118 | -3.290 | 0.816 | 0.012 | 0.015 | 9310.0 | 6250.0 | 1.0 |
| log10_nHI[1] | 0.715 | 0.437 | -0.113 | 1.535 | 0.005 | 0.006 | 6986.0 | 5607.0 | 1.0 |
| log10_nHI[2] | 0.172 | 0.674 | -1.108 | 1.412 | 0.008 | 0.010 | 7558.0 | 5945.0 | 1.0 |
| tspin[0] | 3183.742 | 1795.610 | 363.277 | 6556.526 | 22.032 | 19.918 | 5991.0 | 4379.0 | 1.0 |
| tspin[1] | 21.309 | 13.103 | 11.047 | 42.405 | 0.234 | 0.502 | 3374.0 | 4162.0 | 1.0 |
| tspin[2] | 362.892 | 151.354 | 109.553 | 642.948 | 1.552 | 1.520 | 9395.0 | 5177.0 | 1.0 |
| absorption_weight[0] | 0.551 | 0.393 | 0.019 | 1.265 | 0.005 | 0.006 | 6141.0 | 3672.0 | 1.0 |
| absorption_weight[1] | 0.809 | 0.102 | 0.631 | 1.002 | 0.001 | 0.001 | 6488.0 | 6282.0 | 1.0 |
| absorption_weight[2] | 0.900 | 0.472 | 0.149 | 1.767 | 0.005 | 0.005 | 9086.0 | 5117.0 | 1.0 |
| tau_total[0] | 0.143 | 0.186 | 0.019 | 0.368 | 0.004 | 0.025 | 5725.0 | 3797.0 | 1.0 |
| tau_total[1] | 3.398 | 0.411 | 2.574 | 4.126 | 0.005 | 0.004 | 6485.0 | 6241.0 | 1.0 |
| tau_total[2] | 0.181 | 0.130 | 0.048 | 0.414 | 0.002 | 0.003 | 9018.0 | 5261.0 | 1.0 |
| log10_Pth[0] | 2.489 | 1.209 | 0.080 | 4.563 | 0.012 | 0.016 | 9911.0 | 6462.0 | 1.0 |
| log10_Pth[1] | 1.996 | 0.560 | 0.937 | 3.081 | 0.008 | 0.008 | 5024.0 | 4814.0 | 1.0 |
| log10_Pth[2] | 2.694 | 0.806 | 1.163 | 4.184 | 0.009 | 0.011 | 8349.0 | 5604.0 | 1.0 |
| log10_Pnth[0] | 4.002 | 1.055 | 2.052 | 5.907 | 0.011 | 0.014 | 9498.0 | 5995.0 | 1.0 |
| log10_Pnth[1] | 4.491 | 0.421 | 3.680 | 5.252 | 0.005 | 0.005 | 7594.0 | 5722.0 | 1.0 |
| log10_Pnth[2] | 4.188 | 0.549 | 3.152 | 5.173 | 0.006 | 0.007 | 8010.0 | 6003.0 | 1.0 |
| log10_Ptot[0] | 4.024 | 1.061 | 2.036 | 5.910 | 0.011 | 0.014 | 9435.0 | 6037.0 | 1.0 |
| log10_Ptot[1] | 4.492 | 0.421 | 3.681 | 5.257 | 0.005 | 0.005 | 7567.0 | 5722.0 | 1.0 |
| log10_Ptot[2] | 4.211 | 0.561 | 3.087 | 5.159 | 0.006 | 0.008 | 7816.0 | 6070.0 | 1.0 |
We generate posterior predictive checks as well as a trace plot of the individual chains. In the posterior predictive plot, we show each chain as a different color. Each line is one posterior sample.
[20]:
posterior = model.sample_posterior_predictive(
thin=10, # keep one in {thin} posterior samples
)
axes = plot_predictive(model.data, posterior.posterior_predictive)
axes.ravel()[0].sharex(axes.ravel()[1])
Sampling: [absorption, emission]
[21]:
from bayes_spec.plots import plot_traces

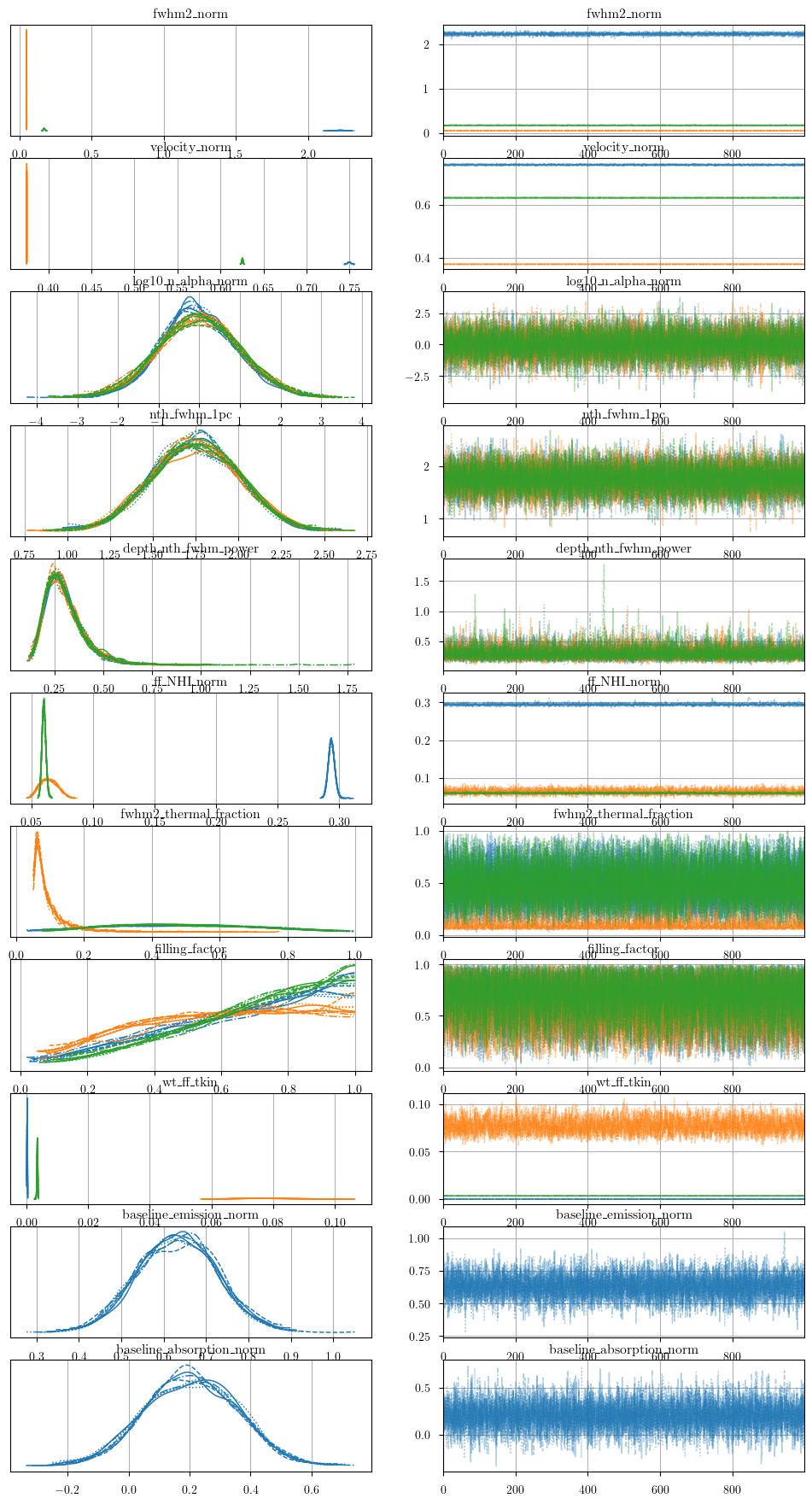

_ = plot_traces(model.trace.posterior, model.cloud_freeRVs + model.baseline_freeRVs + model.hyper_freeRVs)
[22]:

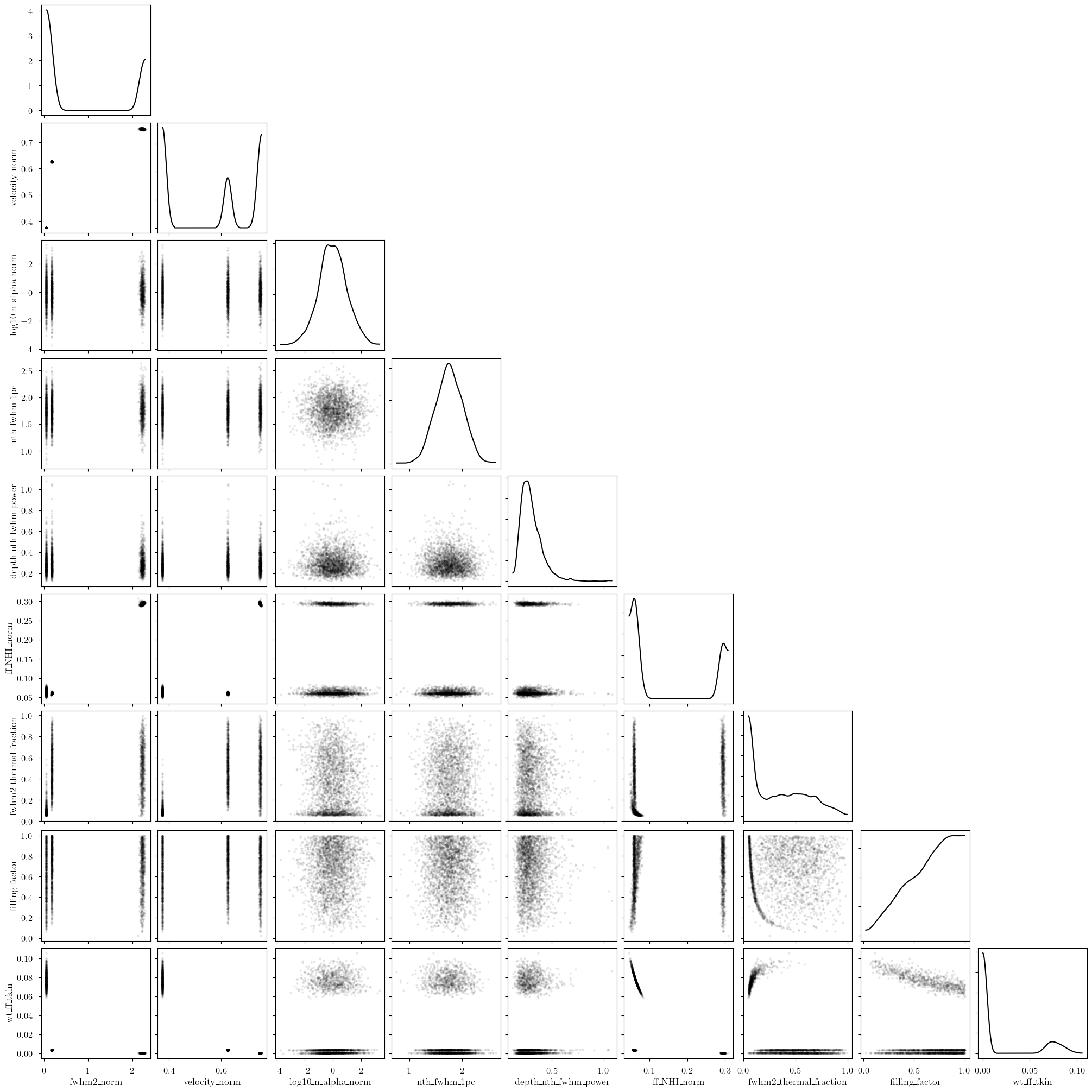

_ = plot_pair(
model.trace.solution_0.sel(draw=slice(None, None, 10)), # samples
model.cloud_freeRVs, # var_names to plot
combine_dims=["cloud"], # concatenate clouds
kind="scatter", # plot type
)
[23]:

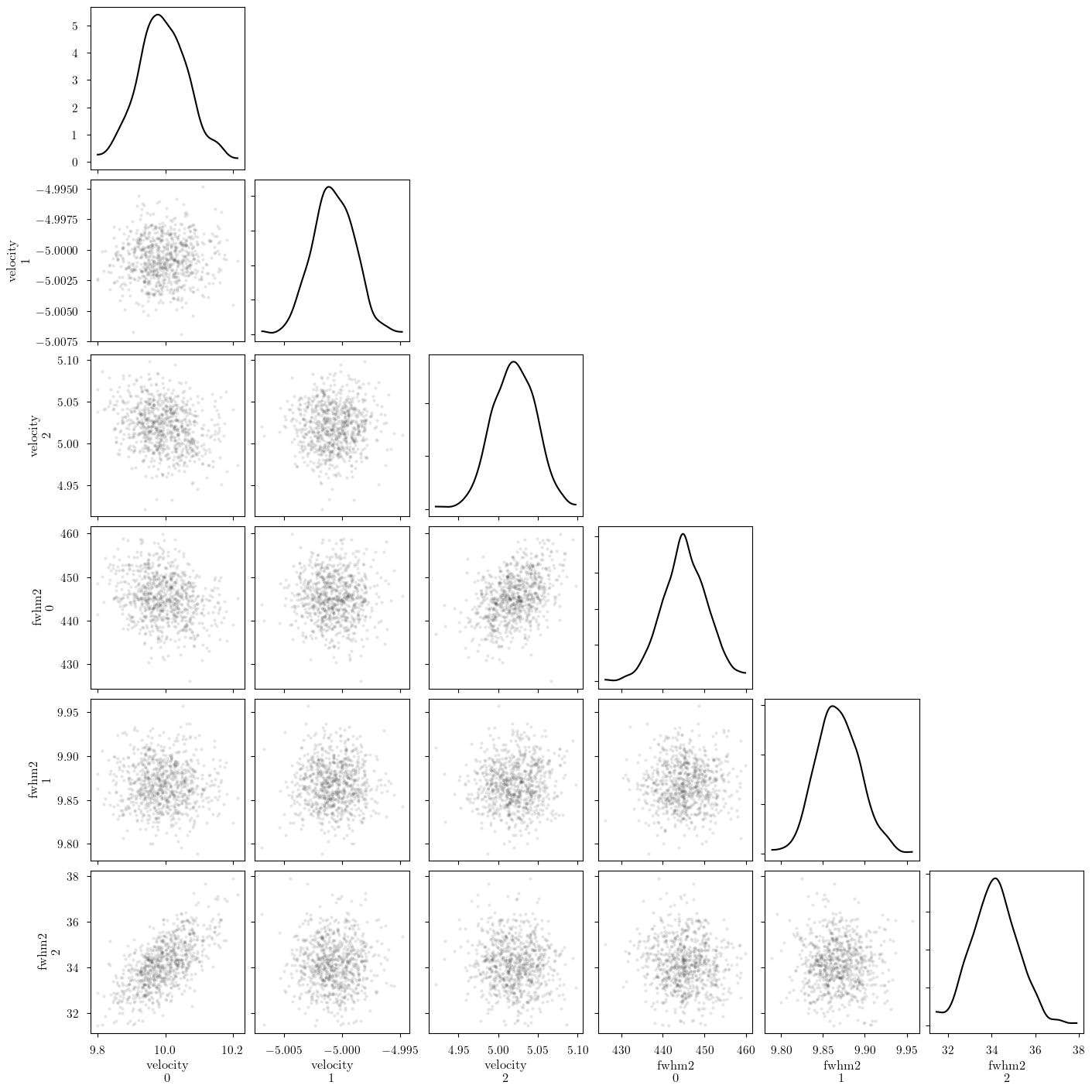

_ = plot_pair(
model.trace.solution_0.sel(draw=slice(None, None, 10)), # samples
["velocity", "fwhm2"], # var_names to plot
combine_dims=None, # do not concatenate clouds
kind="scatter", # plot type
)
[24]:
_ = plot_pair(
model.trace.solution_0.sel(cloud=0, draw=slice(None, None, 10)), # samples
model.cloud_freeRVs + model.hyper_freeRVs + model.baseline_freeRVs, # var_names to plot
kind="scatter", # plot type
)
[25]:
_ = plot_pair(
model.trace.solution_0.sel(cloud=1, draw=slice(None, None, 10)), # samples
model.cloud_freeRVs + model.hyper_freeRVs + model.baseline_freeRVs, # var_names to plot
kind="scatter", # plot type
)
[26]:
_ = plot_pair(
model.trace.solution_0.sel(cloud=2, draw=slice(None, None, 10)), # samples
model.cloud_freeRVs + model.hyper_freeRVs + model.baseline_freeRVs, # var_names to plot
kind="scatter", # plot type
)
[27]:

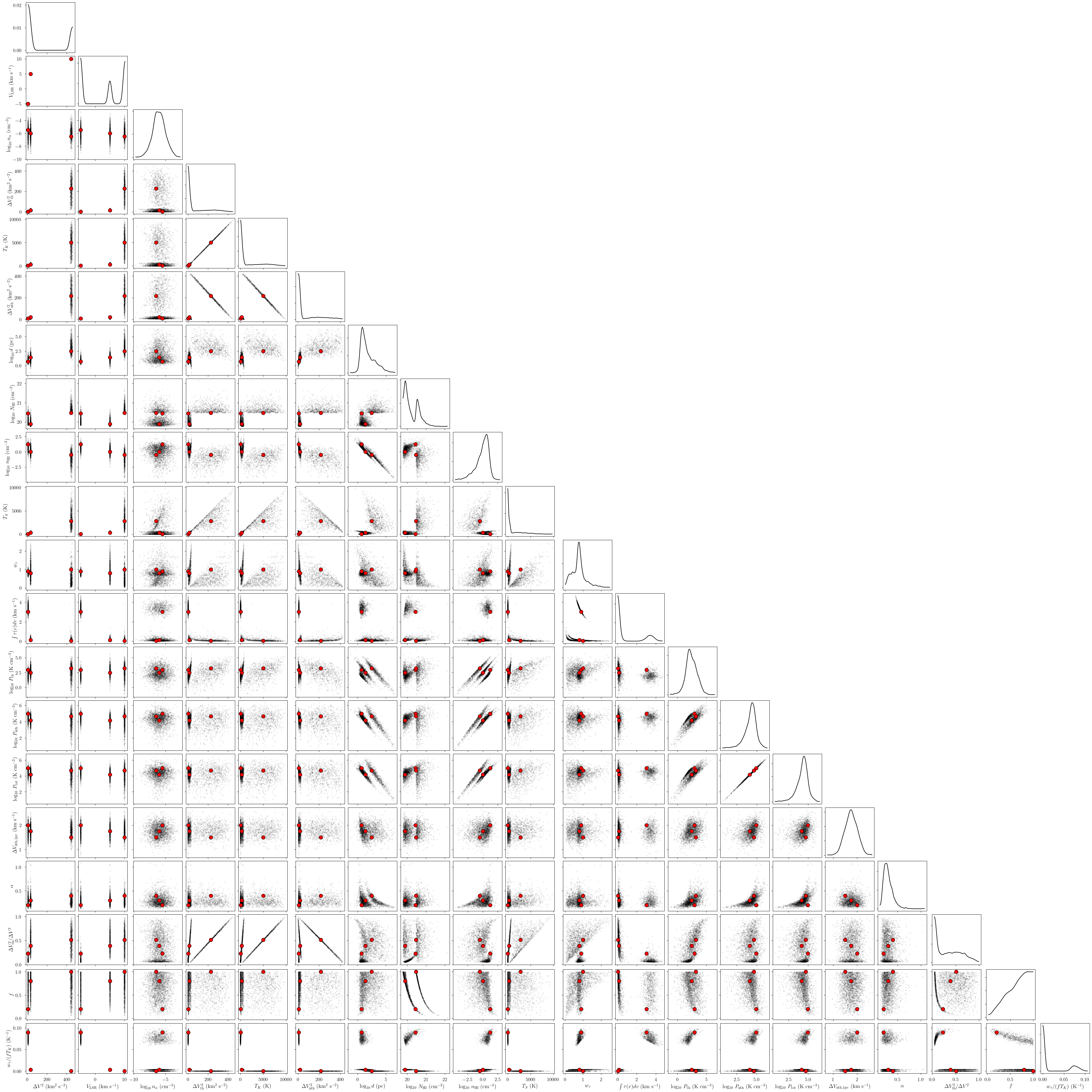

_ = plot_pair(
model.trace.solution_0.sel(draw=slice(None, None, 10)), # samples
var_names, # var_names to plot
combine_dims=["cloud"], # concatenate clouds
labeller=model.labeller, # label manager
kind="scatter", # plot type
reference_values=sim_params, # truths
)
[28]:
# identify simulation cloud corresponding to each posterior cloud
sim_cloud_map = {}
for i in range(n_clouds):
posterior_velocity = model.trace.solution_0['velocity'].sel(cloud=i).data.mean()
match = np.argmin(np.abs(sim_params["velocity"] - posterior_velocity))
sim_cloud_map[i] = match
sim_cloud_map
[28]:
{0: np.int64(2), 1: np.int64(0), 2: np.int64(1)}
[29]:

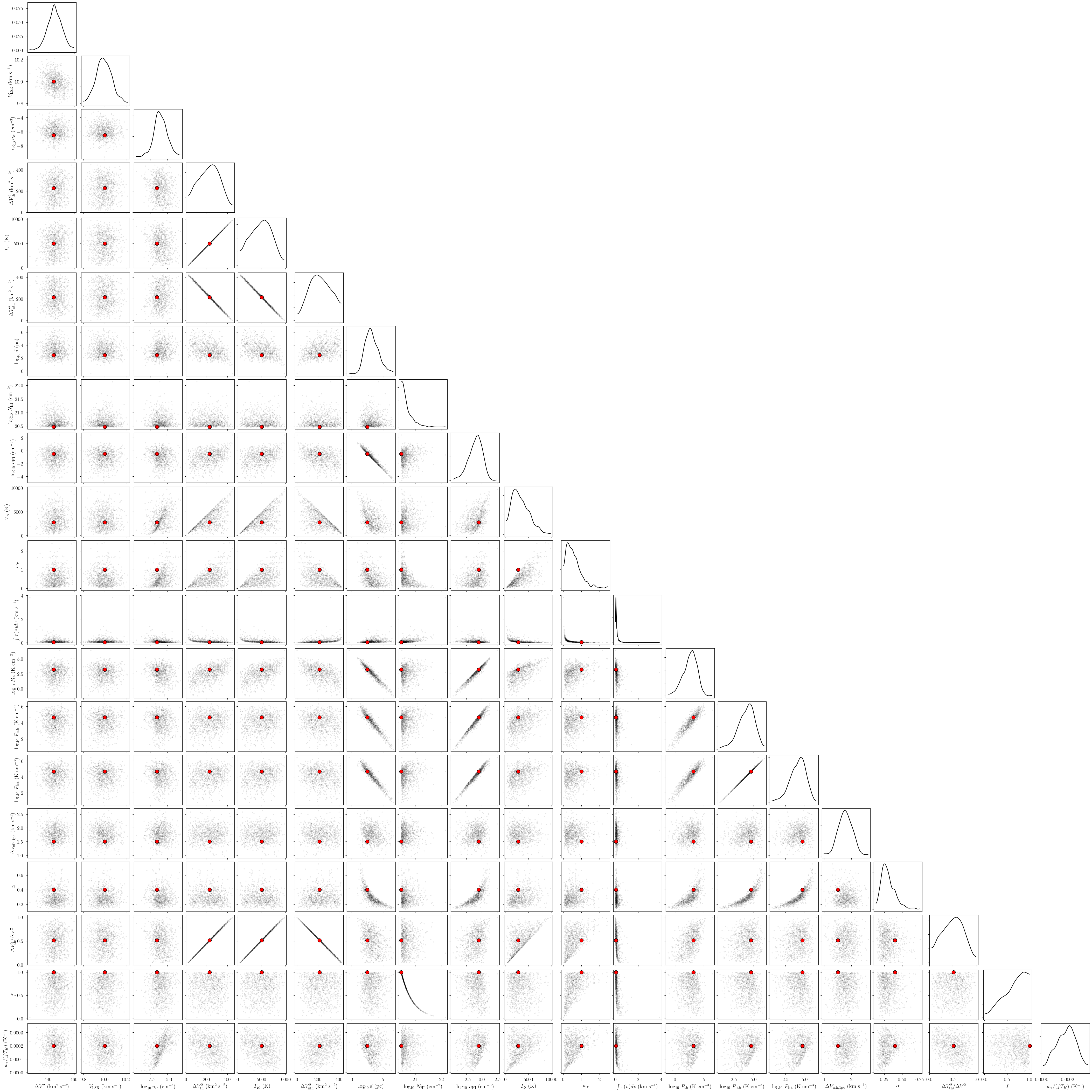

cloud = 0
# subset of sim_params
my_sim_params = {}
for var_name in var_names:
my_sim_params[var_name] = sim_params[var_name][sim_cloud_map[cloud]]
_ = plot_pair(
model.trace.solution_0.sel(cloud=cloud, draw=slice(None, None, 10)), # samples
var_names, # var_names to plot
labeller=model.labeller, # label manager
kind="scatter", # plot type
reference_values=my_sim_params, # truths
)
[30]:

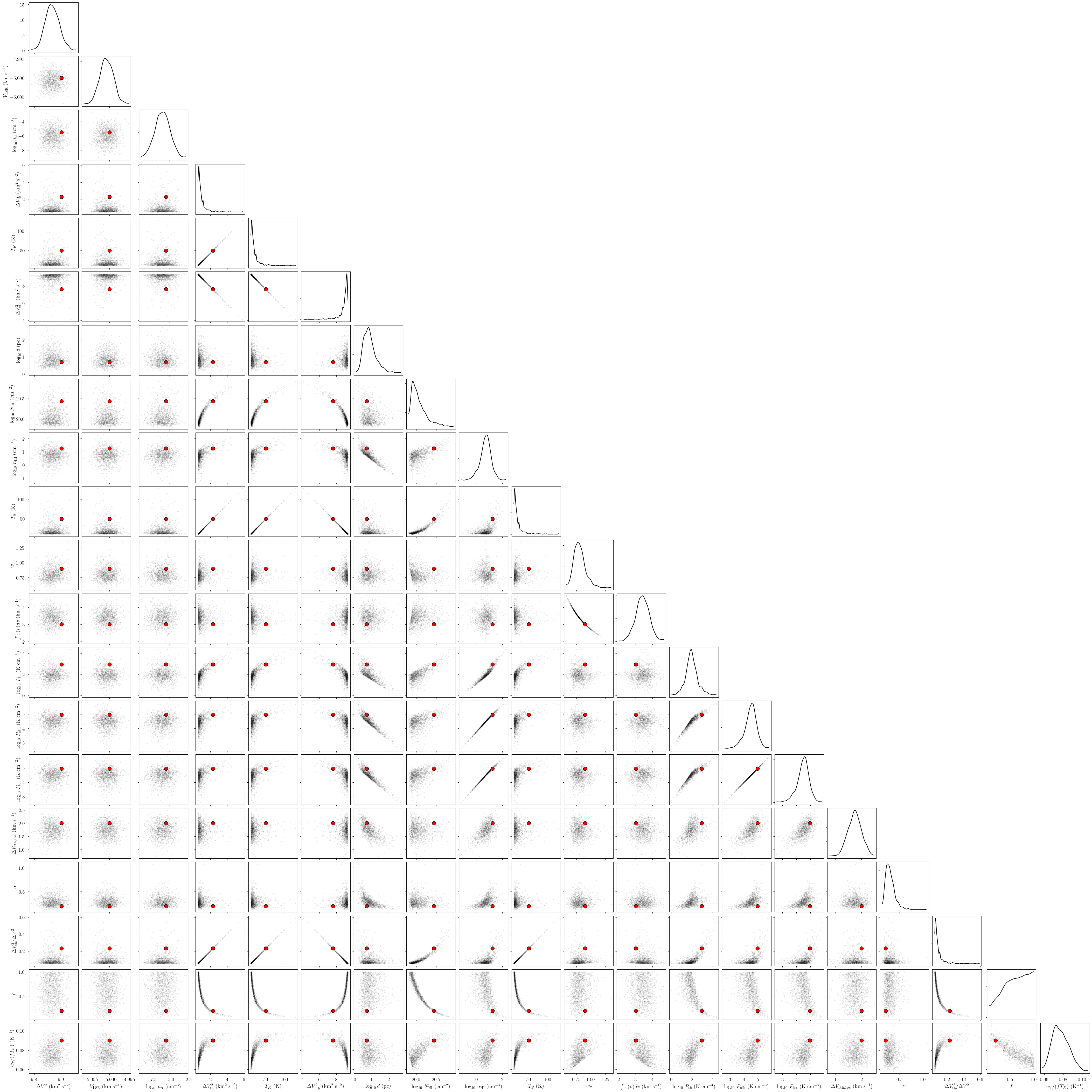

cloud = 1
# subset of sim_params
my_sim_params = {}
for var_name in var_names:
my_sim_params[var_name] = sim_params[var_name][sim_cloud_map[cloud]]
_ = plot_pair(
model.trace.solution_0.sel(cloud=cloud, draw=slice(None, None, 10)), # samples
var_names, # var_names to plot
labeller=model.labeller, # label manager
kind="scatter", # plot type
reference_values=my_sim_params, # truths
)
[31]:

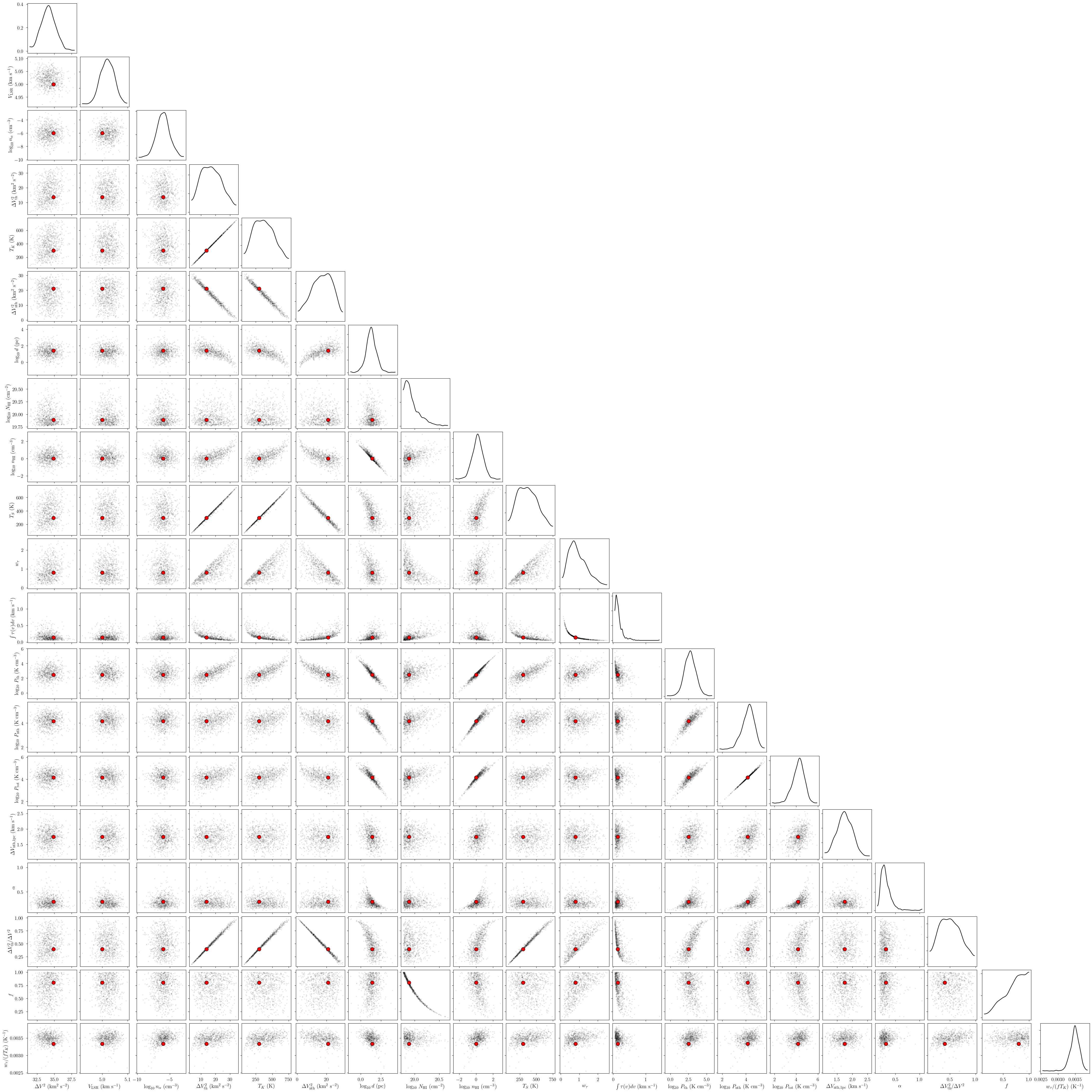

cloud = 2
# subset of sim_params
my_sim_params = {}
for var_name in var_names:
my_sim_params[var_name] = sim_params[var_name][sim_cloud_map[cloud]]
_ = plot_pair(
model.trace.solution_0.sel(cloud=cloud, draw=slice(None, None, 10)), # samples
var_names, # var_names to plot
labeller=model.labeller, # label manager
kind="scatter", # plot type
reference_values=my_sim_params, # truths
)
[32]:
point_stats = az.summary(model.trace.solution_0, kind="stats")
print("BIC:", model.bic())
display(point_stats)
BIC: -1276.649801628776
| mean | sd | hdi_3% | hdi_97% | |
|---|---|---|---|---|
| baseline_emission_norm[0] | 0.632 | 0.093 | 0.454 | 0.802 |
| baseline_absorption_norm[0] | 0.206 | 0.151 | -0.066 | 0.493 |
| log10_n_alpha_norm[0] | -0.014 | 0.938 | -1.653 | 1.903 |
| log10_n_alpha_norm[1] | 0.002 | 1.013 | -1.810 | 2.047 |
| log10_n_alpha_norm[2] | -0.005 | 1.003 | -1.802 | 1.987 |
| fwhm2_norm[0] | 2.227 | 0.026 | 2.179 | 2.277 |
| fwhm2_norm[1] | 0.049 | 0.000 | 0.049 | 0.050 |
| fwhm2_norm[2] | 0.171 | 0.005 | 0.161 | 0.181 |
| velocity_norm[0] | 0.750 | 0.002 | 0.746 | 0.753 |
| velocity_norm[1] | 0.375 | 0.000 | 0.375 | 0.375 |
| velocity_norm[2] | 0.626 | 0.001 | 0.624 | 0.627 |
| nth_fwhm_1pc[0] | 1.749 | 0.251 | 1.311 | 2.245 |
| nth_fwhm_1pc[1] | 1.750 | 0.256 | 1.282 | 2.234 |
| nth_fwhm_1pc[2] | 1.753 | 0.250 | 1.295 | 2.229 |
| depth_nth_fwhm_power[0] | 0.301 | 0.096 | 0.151 | 0.479 |
| depth_nth_fwhm_power[1] | 0.300 | 0.100 | 0.140 | 0.479 |
| depth_nth_fwhm_power[2] | 0.302 | 0.106 | 0.156 | 0.500 |
| ff_NHI_norm[0] | 0.294 | 0.003 | 0.289 | 0.299 |
| ff_NHI_norm[1] | 0.064 | 0.007 | 0.052 | 0.077 |
| ff_NHI_norm[2] | 0.060 | 0.002 | 0.057 | 0.063 |
| fwhm2_thermal_fraction[0] | 0.486 | 0.214 | 0.103 | 0.858 |
| fwhm2_thermal_fraction[1] | 0.099 | 0.061 | 0.050 | 0.195 |
| fwhm2_thermal_fraction[2] | 0.493 | 0.202 | 0.155 | 0.869 |
| filling_factor[0] | 0.670 | 0.232 | 0.252 | 1.000 |
| filling_factor[1] | 0.608 | 0.242 | 0.210 | 0.999 |
| filling_factor[2] | 0.709 | 0.209 | 0.331 | 1.000 |
| wt_ff_tkin[0] | 0.000 | 0.000 | 0.000 | 0.000 |
| wt_ff_tkin[1] | 0.078 | 0.008 | 0.063 | 0.093 |
| wt_ff_tkin[2] | 0.003 | 0.000 | 0.003 | 0.004 |
| fwhm2[0] | 445.337 | 5.218 | 435.831 | 455.311 |
| fwhm2[1] | 9.869 | 0.026 | 9.822 | 9.918 |
| fwhm2[2] | 34.143 | 1.072 | 32.152 | 36.141 |
| velocity[0] | 9.991 | 0.074 | 9.854 | 10.131 |
| velocity[1] | -5.001 | 0.002 | -5.004 | -4.997 |
| velocity[2] | 5.021 | 0.029 | 4.968 | 5.075 |
| log10_n_alpha[0] | -6.014 | 0.938 | -7.653 | -4.097 |
| log10_n_alpha[1] | -5.998 | 1.013 | -7.810 | -3.953 |
| log10_n_alpha[2] | -6.005 | 1.003 | -7.802 | -4.013 |
| fwhm2_thermal[0] | 216.621 | 95.502 | 45.590 | 382.470 |
| fwhm2_thermal[1] | 0.975 | 0.600 | 0.500 | 1.934 |
| fwhm2_thermal[2] | 16.843 | 6.974 | 5.094 | 29.648 |
| tkin[0] | 4734.544 | 2087.323 | 996.424 | 8359.422 |
| tkin[1] | 21.320 | 13.110 | 10.924 | 42.272 |
| tkin[2] | 368.126 | 152.436 | 111.334 | 648.009 |
| fwhm2_nonthermal[0] | 228.716 | 95.238 | 63.970 | 399.158 |
| fwhm2_nonthermal[1] | 8.894 | 0.600 | 7.936 | 9.393 |
| fwhm2_nonthermal[2] | 17.300 | 6.849 | 4.661 | 28.882 |
| log10_depth[0] | 3.323 | 1.102 | 1.427 | 5.426 |
| log10_depth[1] | 0.864 | 0.369 | 0.225 | 1.519 |
| log10_depth[2] | 1.294 | 0.642 | 0.131 | 2.539 |
| log10_NHI[0] | 20.681 | 0.209 | 20.462 | 21.068 |
| log10_NHI[1] | 20.069 | 0.187 | 19.813 | 20.429 |
| log10_NHI[2] | 19.955 | 0.165 | 19.763 | 20.269 |
| log10_nHI[0] | -1.132 | 1.118 | -3.290 | 0.816 |
| log10_nHI[1] | 0.715 | 0.437 | -0.113 | 1.535 |
| log10_nHI[2] | 0.172 | 0.674 | -1.108 | 1.412 |
| tspin[0] | 3183.742 | 1795.610 | 363.277 | 6556.526 |
| tspin[1] | 21.309 | 13.103 | 11.047 | 42.405 |
| tspin[2] | 362.892 | 151.354 | 109.553 | 642.948 |
| absorption_weight[0] | 0.551 | 0.393 | 0.019 | 1.265 |
| absorption_weight[1] | 0.809 | 0.102 | 0.631 | 1.002 |
| absorption_weight[2] | 0.900 | 0.472 | 0.149 | 1.767 |
| tau_total[0] | 0.143 | 0.186 | 0.019 | 0.368 |
| tau_total[1] | 3.398 | 0.411 | 2.574 | 4.126 |
| tau_total[2] | 0.181 | 0.130 | 0.048 | 0.414 |
| log10_Pth[0] | 2.489 | 1.209 | 0.080 | 4.563 |
| log10_Pth[1] | 1.996 | 0.560 | 0.937 | 3.081 |
| log10_Pth[2] | 2.694 | 0.806 | 1.163 | 4.184 |
| log10_Pnth[0] | 4.002 | 1.055 | 2.052 | 5.907 |
| log10_Pnth[1] | 4.491 | 0.421 | 3.680 | 5.252 |
| log10_Pnth[2] | 4.188 | 0.549 | 3.152 | 5.173 |
| log10_Ptot[0] | 4.024 | 1.061 | 2.036 | 5.910 |
| log10_Ptot[1] | 4.492 | 0.421 | 3.681 | 5.257 |
| log10_Ptot[2] | 4.211 | 0.561 | 3.087 | 5.159 |
[ ]:
