EmissionPhysicalModel Tutorial
Trey V. Wenger (c) July 2025
EmissionPhysicalModel is a re-parameterization of EmissionModel that places more physically motivated constraints on the parameter space.
[1]:
# General imports
import time
import matplotlib.pyplot as plt
import arviz as az
import pandas as pd
import numpy as np
import pymc as pm
print("pymc version:", pm.__version__)
print("arviz version:", az.__version__)
import bayes_spec
print("bayes_spec version:", bayes_spec.__version__)
import caribou_hi
print("caribou_hi version:", caribou_hi.__version__)
# Notebook configuration
pd.options.display.max_rows = None
pymc version: 5.22.0
arviz version: 0.22.0dev
bayes_spec version: 1.9.0
caribou_hi version: 4.1.0+3.g94a913e.dirty
Simulating Data
[2]:
from bayes_spec import SpecData
# spectral axes definition
velo_axis = np.linspace(-100.0, 100.0, 200) # km s-1
# data noise can either be a scalar (assumed constant noise across the spectrum)
# or an array of the same length as the data
rms = 0.1 # K
# brightness data. In this case, we just throw in some random data for now
# since we are only doing this in order to simulate some actual data.
emission = rms * np.random.randn(len(velo_axis))
dummy_data = {"emission": SpecData(
velo_axis,
emission,
rms,
xlabel=r"$V_{\rm LSR}$ (km s$^{-1}$)",
ylabel=r"$T_B$ (K)",
)}
# Plot dummy data
fig, ax = plt.subplots(layout="constrained")
ax.plot(dummy_data["emission"].spectral, dummy_data["emission"].brightness, "k-")
ax.set_xlabel(dummy_data["emission"].xlabel)
_ = ax.set_ylabel(dummy_data["emission"].ylabel)
[3]:
from caribou_hi import EmissionPhysicalModel
# Initialize and define the model
n_clouds = 3
baseline_degree = 0
model = EmissionPhysicalModel(
dummy_data,
n_clouds=n_clouds,
baseline_degree=baseline_degree,
bg_temp = 3.77, # assumed background temperature (K)
seed=1234,
verbose=True,
)
model.add_priors(
prior_filling_factor=[2.0, 1.0], # filling factor prior shape
prior_ff_NHI=1.0e21, # filling factor * column density prior width (cm-2)
prior_fwhm2=200.0, # FWHM^2 prior width (km2 s-2)
prior_fwhm2_thermal_fraction=[2.0, 2.0], # thermal FWHM^2 fraction prior shape
prior_velocity=[-20.0, 20.0], # lower and upper limit of velocity prior (km/s)
prior_log10_n_alpha=[-6.0, 1.0], # log10(n_alpha) prior width (cm-3)
prior_nth_fwhm_1pc=[1.75, 0.25], # non-thermal FWHM at 1 pc prior mean and width (km s-1)
prior_depth_nth_fwhm_power=[0.3, 0.1], # non-thermal FWHM vs. depth power prior mean and width
prior_fwhm_L=None, # Assume Gaussian line profile
prior_baseline_coeffs=None, # Default baseline priors
)
model.add_likelihood()
[4]:
from caribou_hi import physics
# Simulation parameters
filling_factor = np.array([0.2, 0.8, 1.0])
log10_nHI = np.array([1.25, 0.0, -0.5])
tkin = np.array([50.0, 300.0, 5000.0])
log10_n_alpha = np.array([-5.5, -6.0, -6.5])
depth = np.array([5.0, 25.0, 300.0])
nth_fwhm_1pc = np.array([1.25, 1.75, 1.5])
depth_nth_fwhm_power = np.array([0.2, 0.3, 0.4])
tspin = physics.calc_spin_temp(tkin, 10.0**log10_nHI, 10.0**log10_n_alpha).eval()
print("tspin", tspin)
fwhm2_nonthermal = physics.calc_nonthermal_fwhm(depth, nth_fwhm_1pc, depth_nth_fwhm_power)**2.0
print("fwhm2_nonthermal", fwhm2_nonthermal)
fwhm2_thermal = physics.calc_thermal_fwhm2(tkin)
print("fwhm2_thermal", fwhm2_thermal)
fwhm2 = fwhm2_nonthermal + fwhm2_thermal
print("fwhm2", fwhm2)
fwhm2_thermal_fraction = fwhm2_thermal/fwhm2
print("fwhm2_thermal_fraction", fwhm2_thermal_fraction)
log10_Pth = np.log10(tkin) + log10_nHI
print("log10_Pth", log10_Pth)
log10_NHI = log10_nHI + np.log10(depth) + 18.489351
print("log10_NHI", log10_NHI)
tau_total = physics.calc_tau_total(10.0**log10_NHI, tspin)
print("tau_total", tau_total)
sim_params = {
"filling_factor": filling_factor,
"log10_NHI": log10_NHI,
"fwhm2": fwhm2,
"fwhm2_thermal_fraction": fwhm2_thermal_fraction,
"velocity": np.array([-5.0, 5.0, 10.0]),
"log10_n_alpha": log10_n_alpha,
"nth_fwhm_1pc": nth_fwhm_1pc,
"depth_nth_fwhm_power": depth_nth_fwhm_power,
"baseline_emission_norm": [0.0],
}
# add derived quantities to sim_params
for key in model.cloud_deterministics:
if key not in sim_params.keys():
sim_params[key] = model.model[key].eval(sim_params, on_unused_input="ignore")
# Evaluate and save simulated observation
emission = model.model["emission"].eval(sim_params, on_unused_input="ignore")
data = {"emission": SpecData(
velo_axis,
emission,
rms,
xlabel=r"$V_{\rm LSR}$ (km s$^{-1}$)",
ylabel=r"$T_B$ (K)",
)}
tspin [ 49.9920589 297.73994712 2795.52422645]
fwhm2_nonthermal [ 2.97445928 21.12711044 215.71459099]
fwhm2_thermal [ 2.2876605 13.725963 228.76605 ]
fwhm2 [ 5.26211978 34.85307344 444.48064099]
fwhm2_thermal_fraction [0.43474124 0.3938236 0.5146817 ]
log10_Pth [2.94897 2.47712125 3.19897 ]
log10_NHI [20.438321 19.88729101 20.46647225]
tau_total [3.01140471 0.14216839 0.05745901]
[5]:
sim_params
[5]:
{'filling_factor': array([0.2, 0.8, 1. ]),
'log10_NHI': array([20.438321 , 19.88729101, 20.46647225]),
'fwhm2': array([ 5.26211978, 34.85307344, 444.48064099]),
'fwhm2_thermal_fraction': array([0.43474124, 0.3938236 , 0.5146817 ]),
'velocity': array([-5., 5., 10.]),
'log10_n_alpha': array([-5.5, -6. , -6.5]),
'nth_fwhm_1pc': array([1.25, 1.75, 1.5 ]),
'depth_nth_fwhm_power': array([0.2, 0.3, 0.4]),
'baseline_emission_norm': [0.0],
'fwhm2_thermal': array([ 2.2876605, 13.725963 , 228.76605 ]),
'tkin': array([ 50., 300., 5000.]),
'fwhm2_nonthermal': array([ 2.97445928, 21.12711044, 215.71459099]),
'log10_depth': array([ 5., 25., 300.]),
'log10_nHI': array([ -3.05103 , -23.60205999, -298.02287875]),
'tspin': array([ 49.99124125, 297.4138673 , 1729.59964942]),
'tau_total': array([3.01145396, 0.14232426, 0.09287008]),
'log10_Pth': array([ -1.35205999, -21.12493874, -294.32390874]),
'log10_Pnth': array([ 2.49618032e-01, -1.94499799e+01, -2.92861759e+02]),
'log10_Ptot': array([ 2.60351217e-01, -1.94408959e+01, -2.92847028e+02])}
[6]:
# Plot data
fig, ax = plt.subplots(layout="constrained")
ax.plot(data["emission"].spectral, data["emission"].brightness, "k-")
ax.set_xlabel(data["emission"].xlabel)
_ = ax.set_ylabel(data["emission"].ylabel)
Model Definition
[7]:
# Initialize and define the model
model = EmissionPhysicalModel(
data,
n_clouds=n_clouds,
baseline_degree=baseline_degree,
bg_temp = 3.77, # assumed background temperature (K)
seed=1234,
verbose=True,
)
model.add_priors(
prior_filling_factor=[2.0, 1.0], # filling factor prior shape
prior_ff_NHI=1.0e21, # filling factor * column density prior width (cm-2)
prior_fwhm2=200.0, # FWHM^2 prior width (km2 s-2)
prior_fwhm2_thermal_fraction=[2.0, 2.0], # thermal FWHM^2 fraction prior shape
prior_velocity=[-20.0, 20.0], # lower and upper limit of velocity prior (km/s)
prior_log10_n_alpha=[-6.0, 1.0], # log10(n_alpha) prior width (cm-3)
prior_nth_fwhm_1pc=[1.75, 0.25], # non-thermal FWHM at 1 pc prior mean and width (km s-1)
prior_depth_nth_fwhm_power=[0.3, 0.1], # non-thermal FWHM vs. depth power prior mean and width
prior_fwhm_L=None, # Assume Gaussian line profile
prior_baseline_coeffs=None, # Default baseline priors
)
model.add_likelihood()
[8]:
# Plot model graph
model.graph().render('emission_physical_model', format='png')
model.graph()
[8]:
[9]:
# model string representation
print(model.model.str_repr())
baseline_emission_norm ~ Normal(0, 1)
fwhm2_norm ~ Gamma(0.5, f())
velocity_norm ~ Beta(2, 2)
log10_n_alpha_norm ~ Normal(0, 1)
nth_fwhm_1pc ~ TruncatedNormal(1.75, 0.25, 0, inf)
depth_nth_fwhm_power ~ InverseGamma(11, 3)
ff_NHI_norm ~ HalfNormal(0, 1)
fwhm2_thermal_fraction ~ Beta(2, 2)
filling_factor ~ Beta(2, 1)
fwhm2 ~ Deterministic(f(fwhm2_norm))
velocity ~ Deterministic(f(velocity_norm))
log10_n_alpha ~ Deterministic(f(log10_n_alpha_norm))
fwhm2_thermal ~ Deterministic(f(fwhm2_thermal_fraction, fwhm2_norm))
tkin ~ Deterministic(f(fwhm2_thermal_fraction, fwhm2_norm))
fwhm2_nonthermal ~ Deterministic(f(fwhm2_thermal_fraction, fwhm2_norm))
log10_depth ~ Deterministic(f(depth_nth_fwhm_power, nth_fwhm_1pc, fwhm2_thermal_fraction, fwhm2_norm))
log10_NHI ~ Deterministic(f(filling_factor, ff_NHI_norm))
log10_nHI ~ Deterministic(f(depth_nth_fwhm_power, nth_fwhm_1pc, filling_factor, ff_NHI_norm, fwhm2_thermal_fraction, fwhm2_norm))
tspin ~ Deterministic(f(fwhm2_thermal_fraction, log10_n_alpha_norm, fwhm2_norm, depth_nth_fwhm_power, nth_fwhm_1pc, filling_factor, ff_NHI_norm))
tau_total ~ Deterministic(f(filling_factor, ff_NHI_norm, fwhm2_thermal_fraction, log10_n_alpha_norm, fwhm2_norm, depth_nth_fwhm_power, nth_fwhm_1pc))
log10_Pth ~ Deterministic(f(fwhm2_thermal_fraction, depth_nth_fwhm_power, nth_fwhm_1pc, filling_factor, ff_NHI_norm, fwhm2_norm))
log10_Pnth ~ Deterministic(f(fwhm2_thermal_fraction, fwhm2_norm, depth_nth_fwhm_power, nth_fwhm_1pc, filling_factor, ff_NHI_norm))
log10_Ptot ~ Deterministic(f(fwhm2_thermal_fraction, fwhm2_norm, depth_nth_fwhm_power, nth_fwhm_1pc, filling_factor, ff_NHI_norm))
emission ~ Normal(f(filling_factor, baseline_emission_norm, fwhm2_thermal_fraction, log10_n_alpha_norm, fwhm2_norm, ff_NHI_norm, velocity_norm, depth_nth_fwhm_power, nth_fwhm_1pc), <constant>)
[10]:

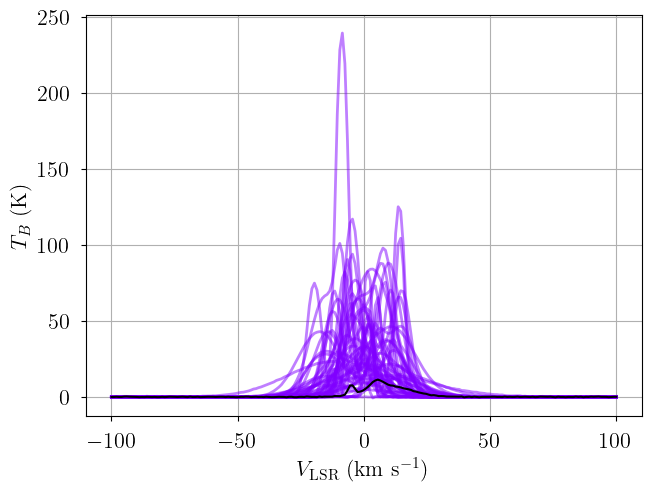

from bayes_spec.plots import plot_predictive
# prior predictive check
prior = model.sample_prior_predictive(
samples=1000, # prior predictive samples
)
_ = plot_predictive(model.data, prior.prior_predictive.sel(draw=slice(None, None, 20)))
Sampling: [baseline_emission_norm, depth_nth_fwhm_power, emission, ff_NHI_norm, filling_factor, fwhm2_norm, fwhm2_thermal_fraction, log10_n_alpha_norm, nth_fwhm_1pc, velocity_norm]
[11]:
print(model.cloud_freeRVs)
print(model.cloud_deterministics)
['fwhm2_norm', 'velocity_norm', 'log10_n_alpha_norm', 'nth_fwhm_1pc', 'depth_nth_fwhm_power', 'ff_NHI_norm', 'fwhm2_thermal_fraction', 'filling_factor']
['fwhm2', 'velocity', 'log10_n_alpha', 'fwhm2_thermal', 'tkin', 'fwhm2_nonthermal', 'log10_depth', 'log10_NHI', 'log10_nHI', 'tspin', 'tau_total', 'log10_Pth', 'log10_Pnth', 'log10_Ptot']
[12]:

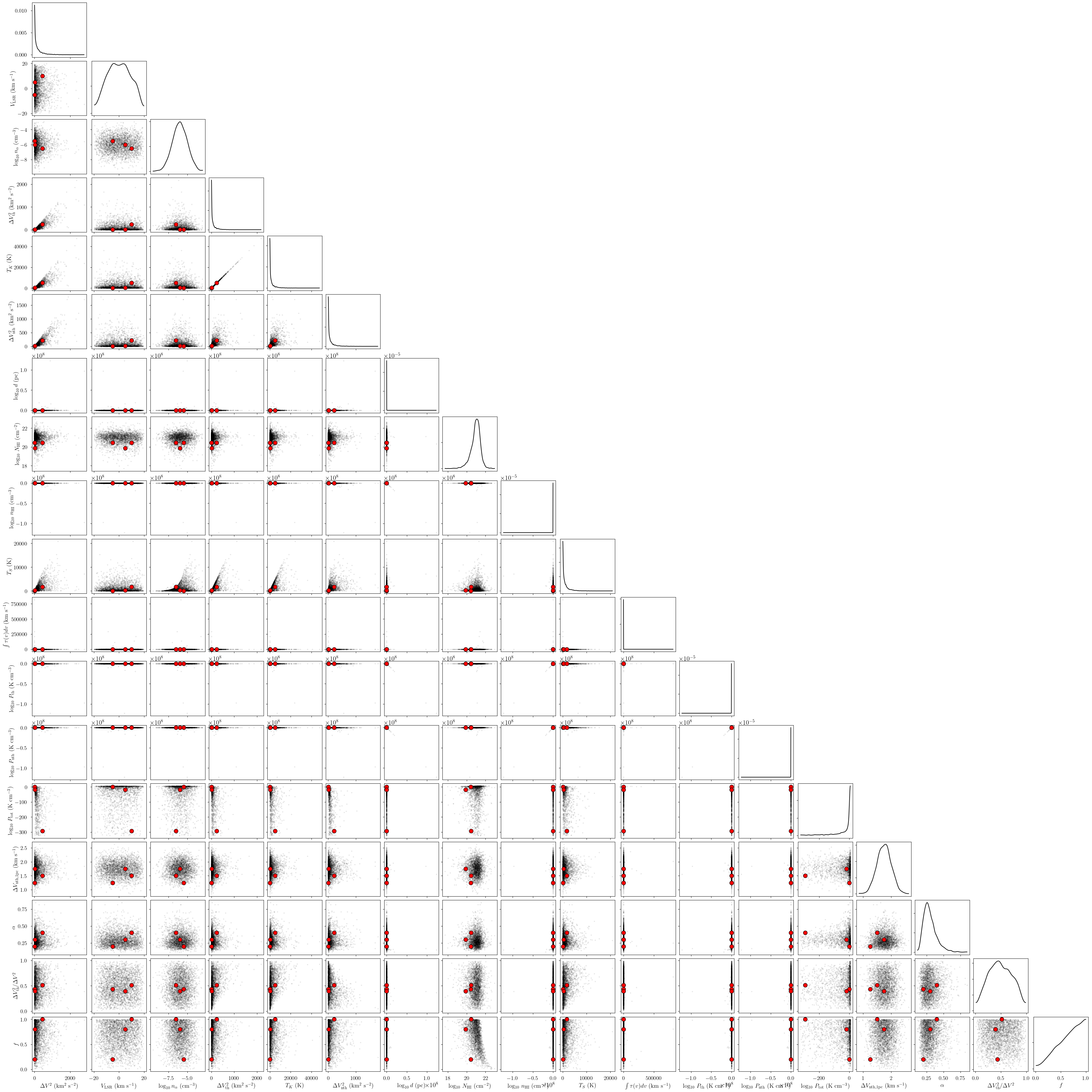

from bayes_spec.plots import plot_pair
var_names = model.cloud_deterministics + [p for p in model.cloud_freeRVs if "_norm" not in p]
print(var_names)
_ = plot_pair(
prior.prior, # samples
var_names, # var_names to plot
combine_dims=["cloud"], # concatenate clouds
labeller=model.labeller, # label manager
kind="scatter", # plot type
reference_values=sim_params, # truths
)
['fwhm2', 'velocity', 'log10_n_alpha', 'fwhm2_thermal', 'tkin', 'fwhm2_nonthermal', 'log10_depth', 'log10_NHI', 'log10_nHI', 'tspin', 'tau_total', 'log10_Pth', 'log10_Pnth', 'log10_Ptot', 'nth_fwhm_1pc', 'depth_nth_fwhm_power', 'fwhm2_thermal_fraction', 'filling_factor']
Variational Inference
[33]:
start = time.time()
model.fit(
n = 1_000_000, # maximum number of VI iterations
draws = 1_000, # number of posterior samples
rel_tolerance = 0.005, # VI relative convergence threshold
abs_tolerance = 0.005, # VI absolute convergence threshold
learning_rate = 0.001, # VI learning rate
start = {"velocity_norm": np.linspace(0.25, 0.75, model.n_clouds)},
)
end = time.time()
print(f"Runtime: {(end-start)/60.0:.2f} minutes")
Convergence achieved at 61300
Interrupted at 61,299 [6%]: Average Loss = 1.0583e+05
Adding log-likelihood to trace
Runtime: 1.09 minutes
[34]:
pm.summary(model.trace.posterior)
/home/twenger/miniforge3/envs/bayes_spec-dev/lib/python3.13/site-packages/numpy/_core/_methods.py:191: RuntimeWarning: invalid value encountered in subtract
x = asanyarray(arr - arrmean)
arviz - WARNING - Shape validation failed: input_shape: (1, 1000), minimum_shape: (chains=2, draws=4)
/home/twenger/miniforge3/envs/bayes_spec-dev/lib/python3.13/site-packages/arviz/stats/stats_utils.py:39: RuntimeWarning: invalid value encountered in subtract
ary = ary - ary.mean(axis, keepdims=True)
/home/twenger/miniforge3/envs/bayes_spec-dev/lib/python3.13/site-packages/arviz/stats/diagnostics.py:979: RuntimeWarning: invalid value encountered in subtract
sims_c2 = (ary - ary.mean()) ** 2
arviz - WARNING - Array contains NaN-value.
/home/twenger/miniforge3/envs/bayes_spec-dev/lib/python3.13/site-packages/arviz/stats/stats_utils.py:39: RuntimeWarning: invalid value encountered in subtract
ary = ary - ary.mean(axis, keepdims=True)
/home/twenger/miniforge3/envs/bayes_spec-dev/lib/python3.13/site-packages/arviz/stats/diagnostics.py:979: RuntimeWarning: invalid value encountered in subtract
sims_c2 = (ary - ary.mean()) ** 2
[34]:
| mean | sd | hdi_3% | hdi_97% | mcse_mean | mcse_sd | ess_bulk | ess_tail | r_hat | |
|---|---|---|---|---|---|---|---|---|---|
| baseline_emission_norm[0] | -0.058 | 7.200000e-02 | -0.191 | 0.071 | 0.002 | 0.002 | 849.0 | 791.0 | NaN |
| log10_n_alpha_norm[0] | 0.009 | 1.021000e+00 | -1.849 | 2.015 | 0.030 | 0.023 | 1131.0 | 900.0 | NaN |
| log10_n_alpha_norm[1] | 0.246 | 7.980000e-01 | -1.202 | 1.735 | 0.026 | 0.018 | 952.0 | 872.0 | NaN |
| log10_n_alpha_norm[2] | 0.484 | 6.680000e-01 | -0.770 | 1.747 | 0.021 | 0.014 | 1068.0 | 1017.0 | NaN |
| fwhm2_norm[0] | 0.034 | 1.000000e-03 | 0.032 | 0.037 | 0.000 | 0.000 | 1021.0 | 870.0 | NaN |
| fwhm2_norm[1] | 0.180 | 4.000000e-03 | 0.171 | 0.188 | 0.000 | 0.000 | 1088.0 | 970.0 | NaN |
| fwhm2_norm[2] | 2.197 | 1.800000e-02 | 2.163 | 2.232 | 0.001 | 0.000 | 918.0 | 873.0 | NaN |
| velocity_norm[0] | 0.375 | 0.000000e+00 | 0.374 | 0.376 | 0.000 | 0.000 | 953.0 | 637.0 | NaN |
| velocity_norm[1] | 0.625 | 1.000000e-03 | 0.624 | 0.627 | 0.000 | 0.000 | 893.0 | 929.0 | NaN |
| velocity_norm[2] | 0.751 | 1.000000e-03 | 0.748 | 0.753 | 0.000 | 0.000 | 1017.0 | 908.0 | NaN |
| nth_fwhm_1pc[0] | 1.749 | 2.450000e-01 | 1.303 | 2.219 | 0.008 | 0.006 | 1040.0 | 913.0 | NaN |
| nth_fwhm_1pc[1] | 1.738 | 2.530000e-01 | 1.284 | 2.219 | 0.008 | 0.006 | 971.0 | 943.0 | NaN |
| nth_fwhm_1pc[2] | 1.736 | 2.520000e-01 | 1.268 | 2.204 | 0.008 | 0.007 | 1013.0 | 982.0 | NaN |
| depth_nth_fwhm_power[0] | 0.305 | 9.800000e-02 | 0.149 | 0.494 | 0.003 | 0.003 | 898.0 | 914.0 | NaN |
| depth_nth_fwhm_power[1] | 0.303 | 9.300000e-02 | 0.135 | 0.471 | 0.003 | 0.002 | 957.0 | 825.0 | NaN |
| depth_nth_fwhm_power[2] | 0.304 | 9.200000e-02 | 0.152 | 0.480 | 0.003 | 0.003 | 876.0 | 854.0 | NaN |
| ff_NHI_norm[0] | 0.038 | 0.000000e+00 | 0.037 | 0.038 | 0.000 | 0.000 | 1054.0 | 892.0 | NaN |
| ff_NHI_norm[1] | 0.062 | 1.000000e-03 | 0.061 | 0.063 | 0.000 | 0.000 | 1052.0 | 1013.0 | NaN |
| ff_NHI_norm[2] | 0.290 | 1.000000e-03 | 0.288 | 0.292 | 0.000 | 0.000 | 911.0 | 937.0 | NaN |
| fwhm2_thermal_fraction[0] | 0.702 | 7.500000e-02 | 0.557 | 0.827 | 0.003 | 0.002 | 853.0 | 903.0 | NaN |
| fwhm2_thermal_fraction[1] | 0.643 | 1.270000e-01 | 0.397 | 0.860 | 0.004 | 0.003 | 914.0 | 1021.0 | NaN |
| fwhm2_thermal_fraction[2] | 0.507 | 1.990000e-01 | 0.162 | 0.874 | 0.007 | 0.004 | 934.0 | 936.0 | NaN |
| filling_factor[0] | 0.799 | 1.240000e-01 | 0.570 | 0.972 | 0.004 | 0.003 | 1068.0 | 983.0 | NaN |
| filling_factor[1] | 0.729 | 2.010000e-01 | 0.335 | 0.987 | 0.006 | 0.005 | 1010.0 | 908.0 | NaN |
| filling_factor[2] | 0.714 | 2.220000e-01 | 0.288 | 0.995 | 0.007 | 0.005 | 964.0 | 937.0 | NaN |
| fwhm2[0] | 6.883 | 2.280000e-01 | 6.455 | 7.315 | 0.007 | 0.006 | 1021.0 | 870.0 | NaN |
| fwhm2[1] | 35.965 | 8.640000e-01 | 34.263 | 37.516 | 0.026 | 0.020 | 1088.0 | 970.0 | NaN |
| fwhm2[2] | 439.494 | 3.675000e+00 | 432.573 | 446.332 | 0.123 | 0.088 | 918.0 | 873.0 | NaN |
| velocity[0] | -5.004 | 1.900000e-02 | -5.037 | -4.968 | 0.001 | 0.000 | 953.0 | 637.0 | NaN |
| velocity[1] | 5.002 | 3.300000e-02 | 4.941 | 5.060 | 0.001 | 0.001 | 893.0 | 929.0 | NaN |
| velocity[2] | 10.026 | 4.600000e-02 | 9.939 | 10.109 | 0.001 | 0.001 | 1017.0 | 908.0 | NaN |
| log10_n_alpha[0] | -5.991 | 1.021000e+00 | -7.849 | -3.985 | 0.030 | 0.023 | 1131.0 | 900.0 | NaN |
| log10_n_alpha[1] | -5.754 | 7.980000e-01 | -7.202 | -4.265 | 0.026 | 0.018 | 952.0 | 872.0 | NaN |
| log10_n_alpha[2] | -5.516 | 6.680000e-01 | -6.770 | -4.253 | 0.021 | 0.014 | 1068.0 | 1017.0 | NaN |
| fwhm2_thermal[0] | 4.831 | 5.420000e-01 | 3.870 | 5.888 | 0.018 | 0.014 | 912.0 | 904.0 | NaN |
| fwhm2_thermal[1] | 23.125 | 4.616000e+00 | 13.960 | 30.570 | 0.152 | 0.098 | 943.0 | 967.0 | NaN |
| fwhm2_thermal[2] | 222.967 | 8.760700e+01 | 68.432 | 381.924 | 2.879 | 1.771 | 932.0 | 934.0 | NaN |
| tkin[0] | 105.578 | 1.185300e+01 | 84.577 | 128.685 | 0.393 | 0.301 | 912.0 | 904.0 | NaN |
| tkin[1] | 505.436 | 1.008990e+02 | 305.116 | 668.148 | 3.324 | 2.145 | 943.0 | 967.0 | NaN |
| tkin[2] | 4873.249 | 1.914780e+03 | 1495.667 | 8347.485 | 62.934 | 38.704 | 932.0 | 934.0 | NaN |
| fwhm2_nonthermal[0] | 2.052 | 5.200000e-01 | 1.241 | 3.162 | 0.018 | 0.015 | 834.0 | 904.0 | NaN |
| fwhm2_nonthermal[1] | 12.840 | 4.573000e+00 | 4.872 | 21.514 | 0.153 | 0.098 | 909.0 | 978.0 | NaN |
| fwhm2_nonthermal[2] | 216.527 | 8.754400e+01 | 55.148 | 368.715 | 2.870 | 1.764 | 937.0 | 936.0 | NaN |
| log10_depth[0] | 0.615 | 6.260000e-01 | 0.049 | 1.368 | 0.021 | 0.149 | 955.0 | 917.0 | NaN |
| log10_depth[1] | 40.973 | 1.710460e+02 | 0.784 | 109.309 | 5.522 | 35.347 | 897.0 | 1072.0 | NaN |
| log10_depth[2] | 572139.007 | 1.301091e+07 | 1.633 | 158501.566 | 410199.826 | 6396788.026 | 922.0 | 787.0 | NaN |
| log10_NHI[0] | 19.680 | 7.600000e-02 | 19.583 | 19.813 | 0.002 | 0.003 | 1051.0 | 937.0 | NaN |
| log10_NHI[1] | 19.952 | 1.620000e-01 | 19.790 | 20.261 | 0.005 | 0.007 | 1014.0 | 908.0 | NaN |
| log10_NHI[2] | 20.640 | 1.920000e-01 | 20.462 | 21.000 | 0.006 | 0.009 | 961.0 | 902.0 | NaN |
| log10_nHI[0] | 0.575 | 6.290000e-01 | -0.193 | 1.228 | 0.021 | 0.147 | 962.0 | 819.0 | NaN |
| log10_nHI[1] | -39.511 | 1.710500e+02 | -107.912 | 0.780 | 5.521 | 35.348 | 896.0 | 1072.0 | NaN |
| log10_nHI[2] | -572136.856 | 1.301091e+07 | -158499.471 | 0.894 | 410199.826 | 6396788.026 | 922.0 | 787.0 | NaN |
| tspin[0] | 105.290 | 1.194200e+01 | 84.044 | 128.171 | 0.394 | 0.302 | 918.0 | 904.0 | NaN |
| tspin[1] | 485.351 | 1.011250e+02 | 299.914 | 660.169 | 3.187 | 2.190 | 1017.0 | 997.0 | NaN |
| tspin[2] | 3634.938 | 1.675554e+03 | 852.791 | 6780.765 | 53.510 | 34.898 | 1009.0 | 803.0 | NaN |
| tau_total[0] | 0.257 | 6.200000e-02 | 0.175 | 0.369 | 0.002 | 0.003 | 1044.0 | 901.0 | NaN |
| tau_total[1] | 0.118 | 9.500000e-02 | 0.053 | 0.230 | 0.003 | 0.015 | 964.0 | 975.0 | NaN |
| tau_total[2] | 0.105 | 1.580000e-01 | 0.021 | 0.248 | 0.005 | 0.033 | 1110.0 | 1026.0 | NaN |
| log10_Pth[0] | 2.596 | 6.530000e-01 | 1.734 | 3.276 | 0.021 | 0.144 | 965.0 | 884.0 | NaN |
| log10_Pth[1] | -36.817 | 1.710660e+02 | -105.338 | 3.609 | 5.522 | 35.346 | 895.0 | 1026.0 | NaN |
| log10_Pth[2] | -572133.212 | 1.301091e+07 | -158496.236 | 4.861 | 410199.827 | 6396788.028 | 922.0 | 787.0 | NaN |
| log10_Pnth[0] | 3.701 | 5.880000e-01 | 3.017 | 4.327 | 0.019 | 0.152 | 979.0 | 851.0 | NaN |
| log10_Pnth[1] | -35.605 | 1.710260e+02 | -103.840 | 4.239 | 5.521 | 35.352 | 897.0 | 1072.0 | NaN |
| log10_Pnth[2] | -572131.741 | 1.301091e+07 | -158494.092 | 4.854 | 410199.825 | 6396788.023 | 924.0 | 787.0 | NaN |
| log10_Ptot[0] | 3.735 | 5.910000e-01 | 3.045 | 4.364 | 0.020 | 0.152 | 982.0 | 851.0 | NaN |
| log10_Ptot[1] | -inf | NaN | -103.826 | 4.331 | NaN | NaN | 896.0 | 1072.0 | NaN |
| log10_Ptot[2] | -inf | NaN | -inf | -58.184 | NaN | NaN | 963.0 | 944.0 | NaN |
[35]:

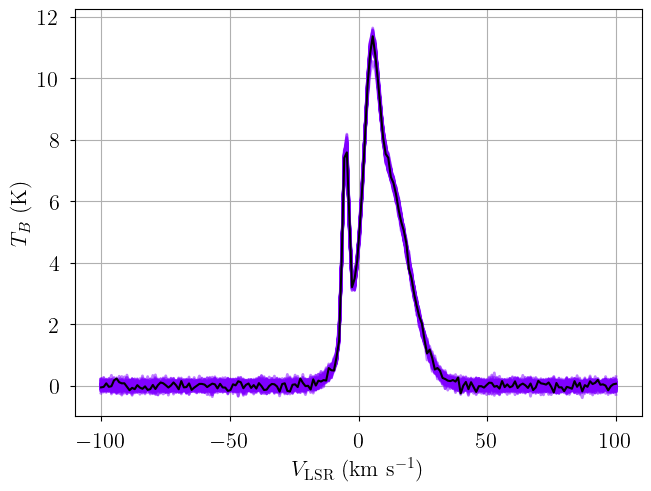

posterior = model.sample_posterior_predictive(
thin=10, # keep one in {thin} posterior samples
)
_ = plot_predictive(model.data, posterior.posterior_predictive)
Sampling: [emission]
Posterior Sampling: MCMC
[36]:
start = time.time()
model.sample(
init="advi+adapt_diag", # initialization strategy
tune=1000, # tuning samples
draws=1000, # posterior samples
chains=8, # number of independent chains
cores=8, # number of parallel chains
init_kwargs={
"rel_tolerance": 0.005,
"abs_tolerance": 0.005,
"learning_rate": 0.001,
"start": {"velocity_norm": np.linspace(0.25, 0.75, model.n_clouds)},
}, # VI initialization arguments
nuts_kwargs={"target_accept": 0.9}, # NUTS arguments
)
end = time.time()
print(f"Runtime: {(end-start)/60.0:.2f} minutes")
Initializing NUTS using custom advi+adapt_diag strategy
Convergence achieved at 61300
Interrupted at 61,299 [6%]: Average Loss = 1.0583e+05
Multiprocess sampling (8 chains in 8 jobs)
NUTS: [baseline_emission_norm, fwhm2_norm, velocity_norm, log10_n_alpha_norm, nth_fwhm_1pc, depth_nth_fwhm_power, ff_NHI_norm, fwhm2_thermal_fraction, filling_factor]
Sampling 8 chains for 1_000 tune and 1_000 draw iterations (8_000 + 8_000 draws total) took 83 seconds.
Adding log-likelihood to trace
There were 2 divergences in converged chains.
Runtime: 2.71 minutes
[37]:
model.solve(
init_params="random_from_data", # GMM initialization strategy
n_init=10, # number of GMM initilizations
max_iter=1_000, # maximum number of GMM iterations
kl_div_threshold=0.1, # covergence threshold
)
GMM converged to unique solution
[38]:
print("solutions:", model.solutions)
az.summary(model.trace["solution_0"])
# this also works: az.summary(model.trace.solution_0)
/home/twenger/miniforge3/envs/bayes_spec-dev/lib/python3.13/site-packages/numpy/_core/_methods.py:191: RuntimeWarning: invalid value encountered in subtract
x = asanyarray(arr - arrmean)
/home/twenger/miniforge3/envs/bayes_spec-dev/lib/python3.13/site-packages/arviz/stats/stats_utils.py:39: RuntimeWarning: invalid value encountered in subtract
ary = ary - ary.mean(axis, keepdims=True)
/home/twenger/miniforge3/envs/bayes_spec-dev/lib/python3.13/site-packages/arviz/stats/diagnostics.py:979: RuntimeWarning: invalid value encountered in subtract
sims_c2 = (ary - ary.mean()) ** 2
arviz - WARNING - Array contains NaN-value.
solutions: [0]
/home/twenger/miniforge3/envs/bayes_spec-dev/lib/python3.13/site-packages/arviz/stats/diagnostics.py:970: RuntimeWarning: invalid value encountered in subtract
ary_folded = np.abs(ary - np.median(ary))
/home/twenger/miniforge3/envs/bayes_spec-dev/lib/python3.13/site-packages/arviz/stats/stats_utils.py:39: RuntimeWarning: invalid value encountered in subtract
ary = ary - ary.mean(axis, keepdims=True)
/home/twenger/miniforge3/envs/bayes_spec-dev/lib/python3.13/site-packages/arviz/stats/diagnostics.py:979: RuntimeWarning: invalid value encountered in subtract
sims_c2 = (ary - ary.mean()) ** 2
[38]:
| mean | sd | hdi_3% | hdi_97% | mcse_mean | mcse_sd | ess_bulk | ess_tail | r_hat | |
|---|---|---|---|---|---|---|---|---|---|
| baseline_emission_norm[0] | -0.064 | 8.000000e-02 | -0.211 | 0.091 | 0.001 | 1.000000e-03 | 11593.0 | 6435.0 | 1.0 |
| log10_n_alpha_norm[0] | -0.007 | 1.015000e+00 | -1.941 | 1.874 | 0.009 | 1.200000e-02 | 13159.0 | 6098.0 | 1.0 |
| log10_n_alpha_norm[1] | 0.021 | 9.920000e-01 | -1.811 | 1.866 | 0.010 | 1.200000e-02 | 9129.0 | 4618.0 | 1.0 |
| log10_n_alpha_norm[2] | 0.062 | 9.460000e-01 | -1.714 | 1.819 | 0.016 | 1.400000e-02 | 3126.0 | 1410.0 | 1.0 |
| fwhm2_norm[0] | 0.020 | 4.000000e-03 | 0.014 | 0.027 | 0.000 | 0.000000e+00 | 2909.0 | 1583.0 | 1.0 |
| fwhm2_norm[1] | 0.170 | 8.000000e-03 | 0.155 | 0.187 | 0.000 | 0.000000e+00 | 4260.0 | 5376.0 | 1.0 |
| fwhm2_norm[2] | 2.233 | 3.500000e-02 | 2.171 | 2.299 | 0.001 | 1.000000e-03 | 4163.0 | 3254.0 | 1.0 |
| velocity_norm[0] | 0.376 | 1.000000e-03 | 0.375 | 0.377 | 0.000 | 0.000000e+00 | 5358.0 | 6295.0 | 1.0 |
| velocity_norm[1] | 0.626 | 1.000000e-03 | 0.624 | 0.628 | 0.000 | 0.000000e+00 | 6879.0 | 5567.0 | 1.0 |
| velocity_norm[2] | 0.747 | 3.000000e-03 | 0.741 | 0.751 | 0.000 | 0.000000e+00 | 3403.0 | 2627.0 | 1.0 |
| nth_fwhm_1pc[0] | 1.747 | 2.490000e-01 | 1.248 | 2.191 | 0.002 | 3.000000e-03 | 10741.0 | 4993.0 | 1.0 |
| nth_fwhm_1pc[1] | 1.750 | 2.540000e-01 | 1.297 | 2.246 | 0.002 | 3.000000e-03 | 11894.0 | 4897.0 | 1.0 |
| nth_fwhm_1pc[2] | 1.749 | 2.500000e-01 | 1.253 | 2.202 | 0.002 | 3.000000e-03 | 11023.0 | 4946.0 | 1.0 |
| depth_nth_fwhm_power[0] | 0.298 | 9.700000e-02 | 0.141 | 0.475 | 0.001 | 2.000000e-03 | 12137.0 | 5816.0 | 1.0 |
| depth_nth_fwhm_power[1] | 0.301 | 1.030000e-01 | 0.145 | 0.485 | 0.001 | 3.000000e-03 | 10915.0 | 4432.0 | 1.0 |
| depth_nth_fwhm_power[2] | 0.302 | 1.020000e-01 | 0.139 | 0.483 | 0.001 | 2.000000e-03 | 13089.0 | 5187.0 | 1.0 |
| ff_NHI_norm[0] | 0.094 | 5.200000e-02 | 0.050 | 0.136 | 0.002 | 1.500000e-02 | 2630.0 | 1664.0 | 1.0 |
| ff_NHI_norm[1] | 0.060 | 3.000000e-03 | 0.055 | 0.066 | 0.000 | 0.000000e+00 | 3694.0 | 3061.0 | 1.0 |
| ff_NHI_norm[2] | 0.296 | 6.000000e-03 | 0.287 | 0.305 | 0.000 | 0.000000e+00 | 2158.0 | 1323.0 | 1.0 |
| fwhm2_thermal_fraction[0] | 0.252 | 1.350000e-01 | 0.126 | 0.520 | 0.003 | 3.000000e-03 | 3930.0 | 3055.0 | 1.0 |
| fwhm2_thermal_fraction[1] | 0.512 | 2.190000e-01 | 0.128 | 0.893 | 0.003 | 2.000000e-03 | 5529.0 | 3096.0 | 1.0 |
| fwhm2_thermal_fraction[2] | 0.501 | 2.220000e-01 | 0.113 | 0.904 | 0.002 | 2.000000e-03 | 11458.0 | 5253.0 | 1.0 |
| filling_factor[0] | 0.592 | 2.530000e-01 | 0.181 | 0.998 | 0.004 | 2.000000e-03 | 4187.0 | 3523.0 | 1.0 |
| filling_factor[1] | 0.681 | 2.250000e-01 | 0.274 | 1.000 | 0.002 | 2.000000e-03 | 12039.0 | 4528.0 | 1.0 |
| filling_factor[2] | 0.671 | 2.320000e-01 | 0.259 | 1.000 | 0.002 | 2.000000e-03 | 12205.0 | 5223.0 | 1.0 |
| fwhm2[0] | 4.048 | 7.280000e-01 | 2.702 | 5.379 | 0.016 | 2.700000e-02 | 2909.0 | 1583.0 | 1.0 |
| fwhm2[1] | 34.038 | 1.695000e+00 | 30.920 | 37.316 | 0.026 | 1.800000e-02 | 4260.0 | 5376.0 | 1.0 |
| fwhm2[2] | 446.527 | 6.901000e+00 | 434.181 | 459.814 | 0.110 | 1.130000e-01 | 4163.0 | 3254.0 | 1.0 |
| velocity[0] | -4.967 | 2.400000e-02 | -5.009 | -4.922 | 0.000 | 0.000000e+00 | 5358.0 | 6295.0 | 1.0 |
| velocity[1] | 5.042 | 4.200000e-02 | 4.966 | 5.124 | 0.001 | 0.000000e+00 | 6879.0 | 5567.0 | 1.0 |
| velocity[2] | 9.864 | 1.050000e-01 | 9.658 | 10.053 | 0.002 | 1.000000e-03 | 3403.0 | 2627.0 | 1.0 |
| log10_n_alpha[0] | -6.007 | 1.015000e+00 | -7.941 | -4.126 | 0.009 | 1.200000e-02 | 13159.0 | 6098.0 | 1.0 |
| log10_n_alpha[1] | -5.979 | 9.920000e-01 | -7.811 | -4.134 | 0.010 | 1.200000e-02 | 9129.0 | 4618.0 | 1.0 |
| log10_n_alpha[2] | -5.938 | 9.460000e-01 | -7.714 | -4.181 | 0.016 | 1.400000e-02 | 3126.0 | 1410.0 | 1.0 |
| fwhm2_thermal[0] | 1.012 | 5.840000e-01 | 0.517 | 2.126 | 0.010 | 1.500000e-02 | 3668.0 | 3747.0 | 1.0 |
| fwhm2_thermal[1] | 17.475 | 7.600000e+00 | 3.842 | 30.558 | 0.095 | 7.300000e-02 | 5559.0 | 3059.0 | 1.0 |
| fwhm2_thermal[2] | 223.744 | 9.920200e+01 | 43.297 | 396.722 | 0.905 | 9.740000e-01 | 11550.0 | 5184.0 | 1.0 |
| tkin[0] | 22.129 | 1.276200e+01 | 11.297 | 46.462 | 0.228 | 3.280000e-01 | 3668.0 | 3747.0 | 1.0 |
| tkin[1] | 381.930 | 1.661070e+02 | 83.967 | 667.893 | 2.079 | 1.587000e+00 | 5559.0 | 3059.0 | 1.0 |
| tkin[2] | 4890.244 | 2.168206e+03 | 946.326 | 8670.921 | 19.772 | 2.128500e+01 | 11550.0 | 5184.0 | 1.0 |
| fwhm2_nonthermal[0] | 3.035 | 7.800000e-01 | 1.555 | 4.497 | 0.015 | 1.900000e-02 | 3331.0 | 1776.0 | 1.0 |
| fwhm2_nonthermal[1] | 16.563 | 7.369000e+00 | 3.508 | 28.924 | 0.090 | 6.600000e-02 | 6185.0 | 4213.0 | 1.0 |
| fwhm2_nonthermal[2] | 222.782 | 9.908400e+01 | 42.309 | 394.782 | 0.907 | 9.670000e-01 | 11527.0 | 5252.0 | 1.0 |
| log10_depth[0] | 1.331 | 1.732000e+00 | 0.000 | 3.019 | 0.024 | 1.540000e-01 | 3637.0 | 2088.0 | 1.0 |
| log10_depth[1] | 91.303 | 1.086404e+03 | 0.002 | 201.257 | 12.301 | 3.153320e+02 | 8542.0 | 5918.0 | 1.0 |
| log10_depth[2] | 613233.938 | 2.575101e+07 | 0.385 | 204446.716 | 291122.528 | 1.215172e+07 | 10969.0 | 5193.0 | 1.0 |
| log10_NHI[0] | 20.230 | 1.980000e-01 | 19.919 | 20.642 | 0.004 | 5.000000e-03 | 3601.0 | 1953.0 | 1.0 |
| log10_NHI[1] | 19.981 | 1.950000e-01 | 19.757 | 20.363 | 0.002 | 3.000000e-03 | 11785.0 | 4972.0 | 1.0 |
| log10_NHI[2] | 20.683 | 2.090000e-01 | 20.462 | 21.062 | 0.002 | 4.000000e-03 | 11974.0 | 5434.0 | 1.0 |
| log10_nHI[0] | 0.409 | 1.798000e+00 | -1.464 | 2.367 | 0.026 | 1.500000e-01 | 3302.0 | 1872.0 | 1.0 |
| log10_nHI[1] | -89.811 | 1.086407e+03 | -199.789 | 2.043 | 12.301 | 3.153330e+02 | 8576.0 | 5809.0 | 1.0 |
| log10_nHI[2] | -613231.743 | 2.575101e+07 | -204444.403 | 1.938 | 291122.528 | 1.215172e+07 | 10967.0 | 5193.0 | 1.0 |
| tspin[0] | 22.114 | 1.275000e+01 | 11.295 | 46.409 | 0.228 | 3.280000e-01 | 3671.0 | 3719.0 | 1.0 |
| tspin[1] | 357.515 | 1.616940e+02 | 68.057 | 641.853 | 2.095 | 1.548000e+00 | 5075.0 | 2912.0 | 1.0 |
| tspin[2] | 2773.682 | 1.934143e+03 | 46.635 | 6175.740 | 27.437 | 1.857400e+01 | 3059.0 | 1333.0 | 1.0 |
| tau_total[0] | 5.056 | 2.849000e+00 | 2.250 | 7.902 | 0.127 | 7.600000e-01 | 2964.0 | 1653.0 | 1.0 |
| tau_total[1] | 0.228 | 2.440000e-01 | 0.045 | 0.611 | 0.004 | 1.100000e-02 | 5905.0 | 3583.0 | 1.0 |
| tau_total[2] | 0.282 | 5.270000e-01 | 0.018 | 1.015 | 0.018 | 5.600000e-02 | 2878.0 | 1321.0 | 1.0 |
| log10_Pth[0] | 1.706 | 1.841000e+00 | -0.266 | 4.054 | 0.026 | 1.460000e-01 | 4118.0 | 2969.0 | 1.0 |
| log10_Pth[1] | -87.282 | 1.086424e+03 | -197.297 | 4.871 | 12.301 | 3.153290e+02 | 8574.0 | 5876.0 | 1.0 |
| log10_Pth[2] | -613228.113 | 2.575101e+07 | -204440.952 | 5.939 | 291122.528 | 1.215172e+07 | 10966.0 | 5193.0 | 1.0 |
| log10_Pnth[0] | 3.699 | 1.747000e+00 | 1.925 | 5.107 | 0.024 | 1.530000e-01 | 4946.0 | 5165.0 | 1.0 |
| log10_Pnth[1] | -85.825 | 1.086390e+03 | -195.628 | 4.914 | 12.301 | 3.153350e+02 | 8741.0 | 5784.0 | 1.0 |
| log10_Pnth[2] | -613226.630 | 2.575101e+07 | -204439.082 | 4.767 | 291122.528 | 1.215172e+07 | 10978.0 | 5179.0 | 1.0 |
| log10_Ptot[0] | 3.705 | 1.749000e+00 | 1.929 | 5.131 | 0.024 | 1.530000e-01 | 4868.0 | 5077.0 | 1.0 |
| log10_Ptot[1] | -inf | NaN | -195.619 | 5.068 | NaN | NaN | 8604.0 | 5856.0 | 1.0 |
| log10_Ptot[2] | -inf | NaN | -inf | -41.035 | NaN | NaN | 5694.0 | 5179.0 | 1.0 |
[39]:

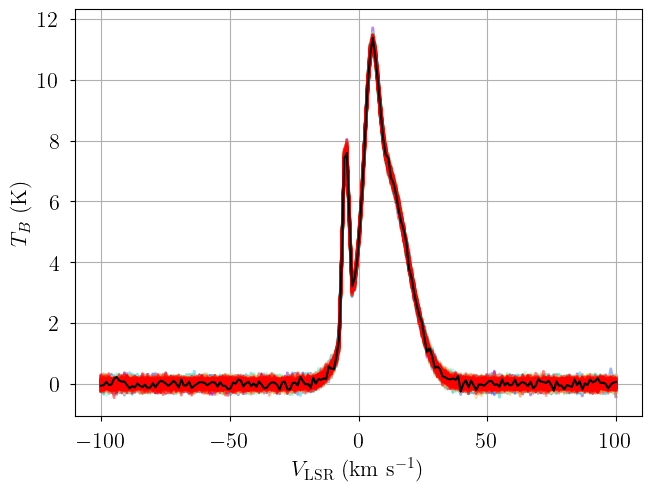

posterior = model.sample_posterior_predictive(
thin=10, # keep one in {thin} posterior samples
)
_ = plot_predictive(model.data, posterior.posterior_predictive)
Sampling: [emission]
[40]:

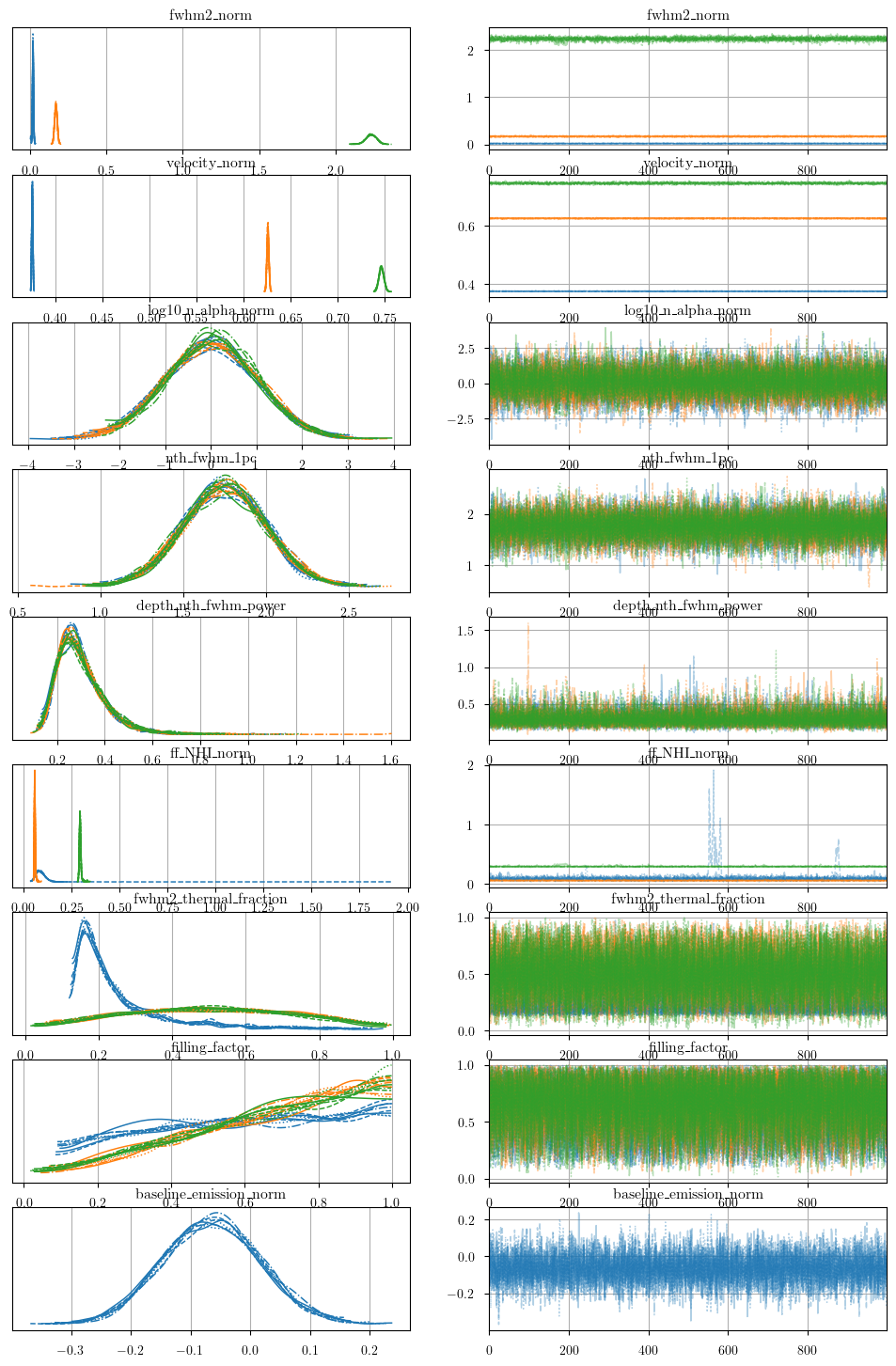

from bayes_spec.plots import plot_traces
_ = plot_traces(model.trace.posterior, model.cloud_freeRVs + model.baseline_freeRVs + model.hyper_freeRVs)
[41]:

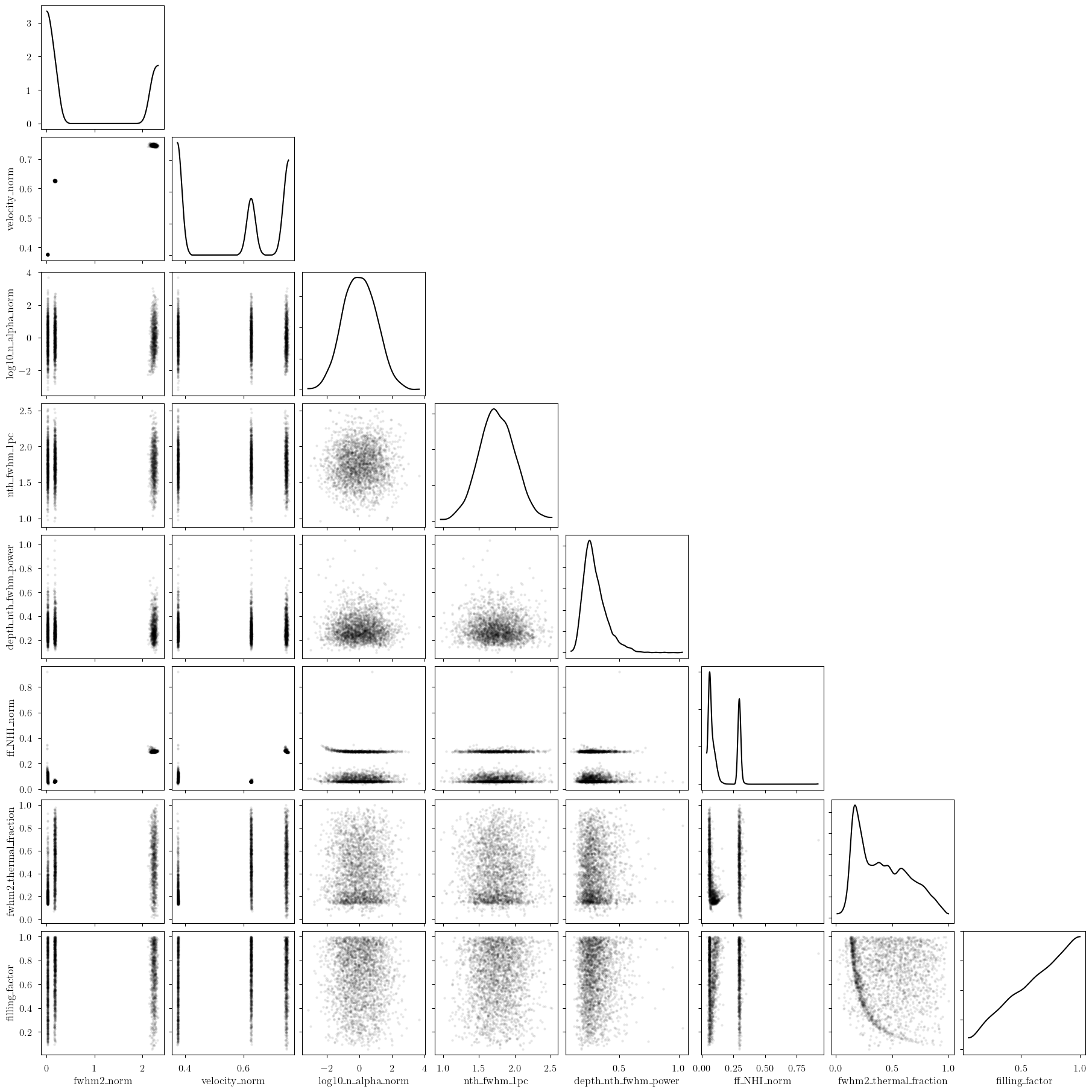

_ = plot_pair(
model.trace.solution_0.sel(draw=slice(None, None, 10)), # samples
model.cloud_freeRVs, # var_names to plot
combine_dims=["cloud"], # concatenate clouds
kind="scatter", # plot type
)
[42]:

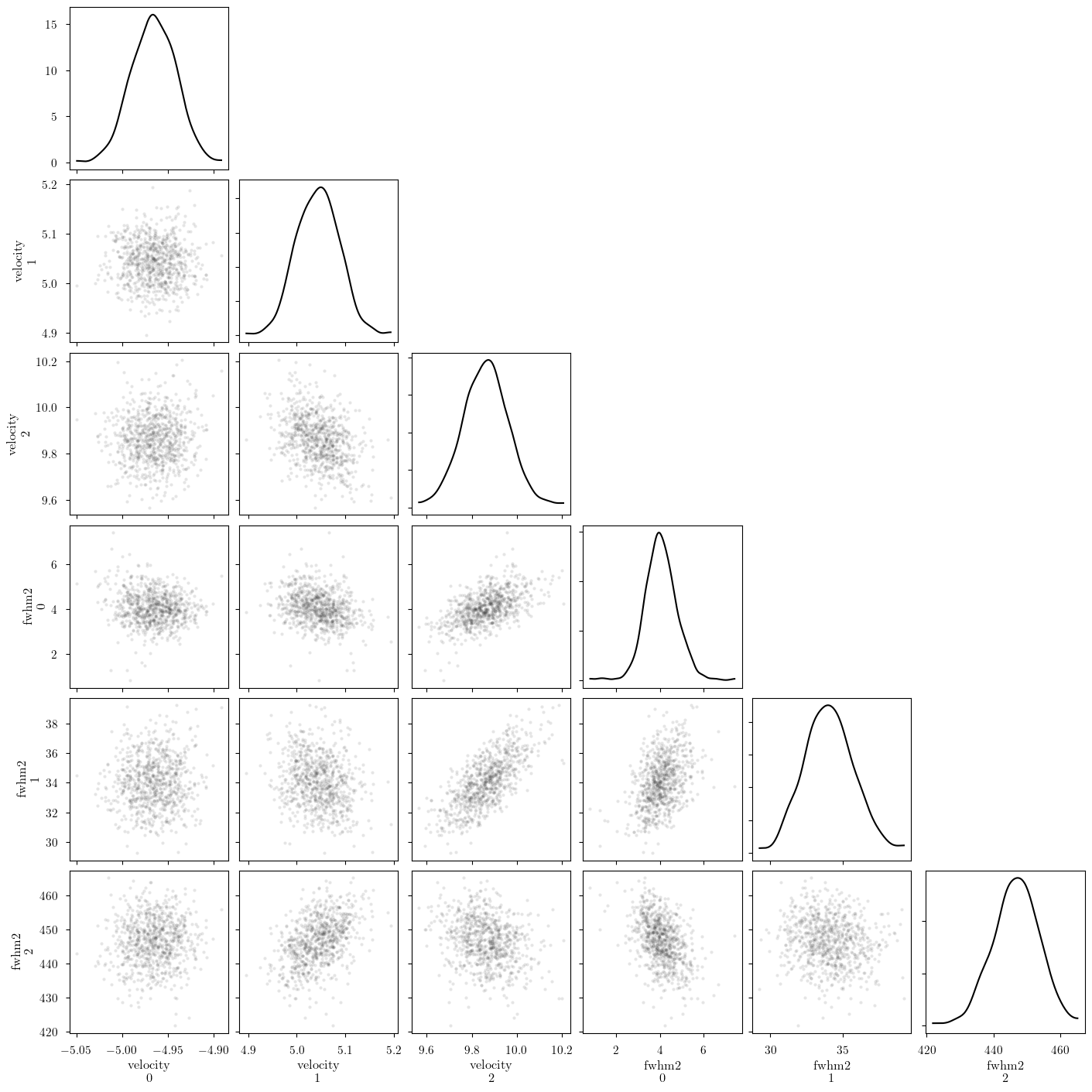

_ = plot_pair(
model.trace.solution_0.sel(draw=slice(None, None, 10)), # samples
["velocity", "fwhm2"], # var_names to plot
combine_dims=None, # do not concatenate clouds
kind="scatter", # plot type
)
[43]:

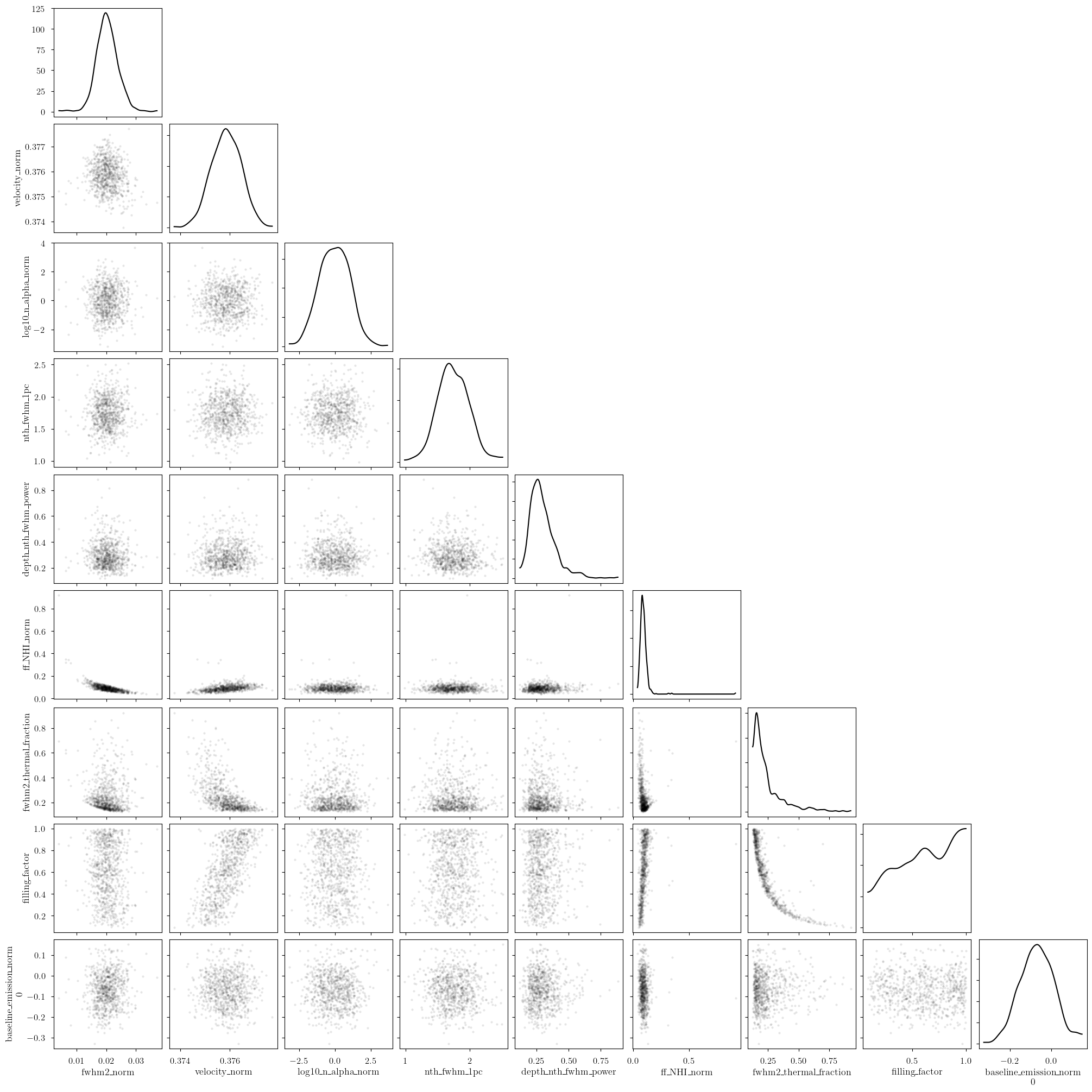

_ = plot_pair(
model.trace.solution_0.sel(cloud=0, draw=slice(None, None, 10)), # samples
model.cloud_freeRVs + model.hyper_freeRVs + model.baseline_freeRVs, # var_names to plot
kind="scatter", # plot type
)
[44]:

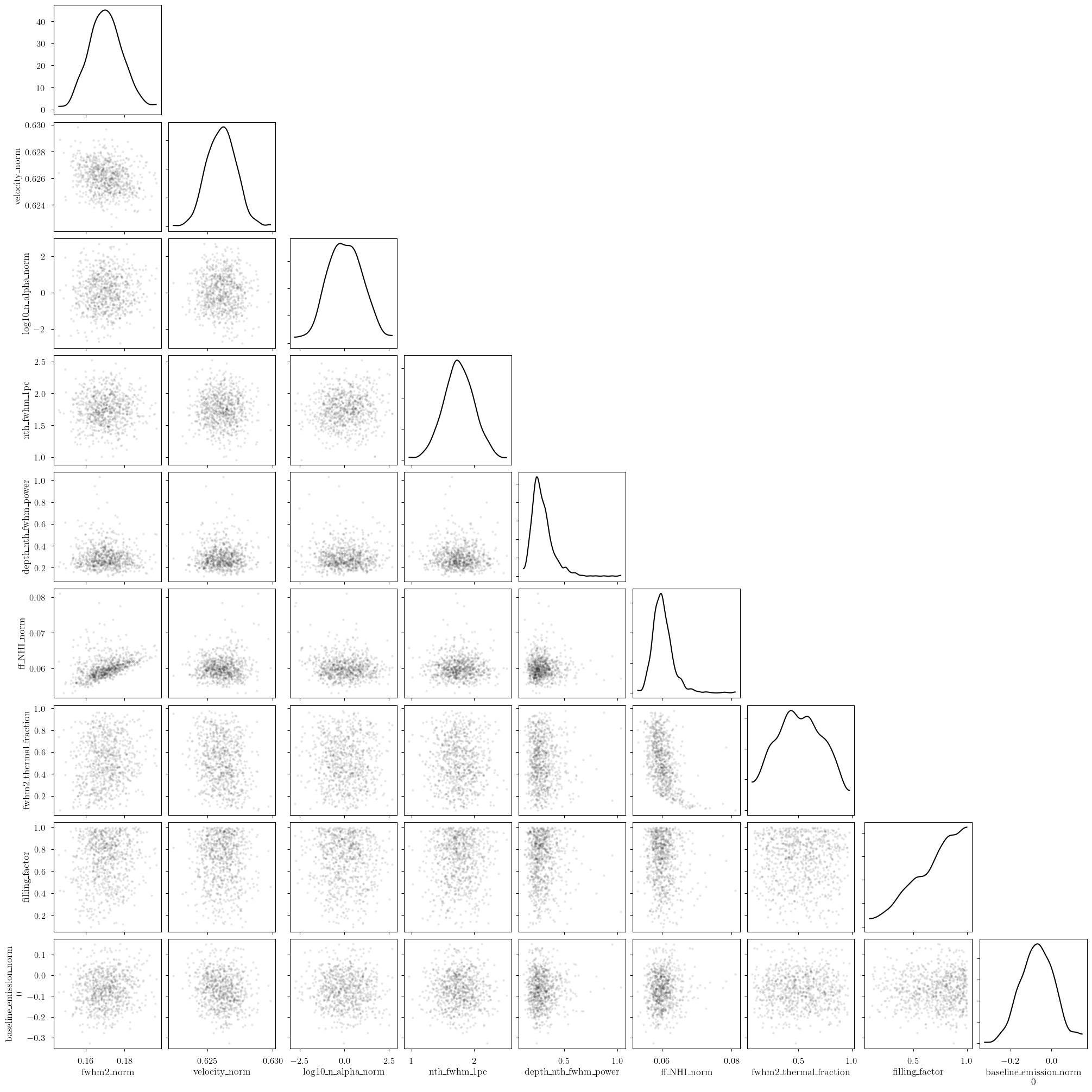

_ = plot_pair(
model.trace.solution_0.sel(cloud=1, draw=slice(None, None, 10)), # samples
model.cloud_freeRVs + model.hyper_freeRVs + model.baseline_freeRVs, # var_names to plot
kind="scatter", # plot type
)
[45]:

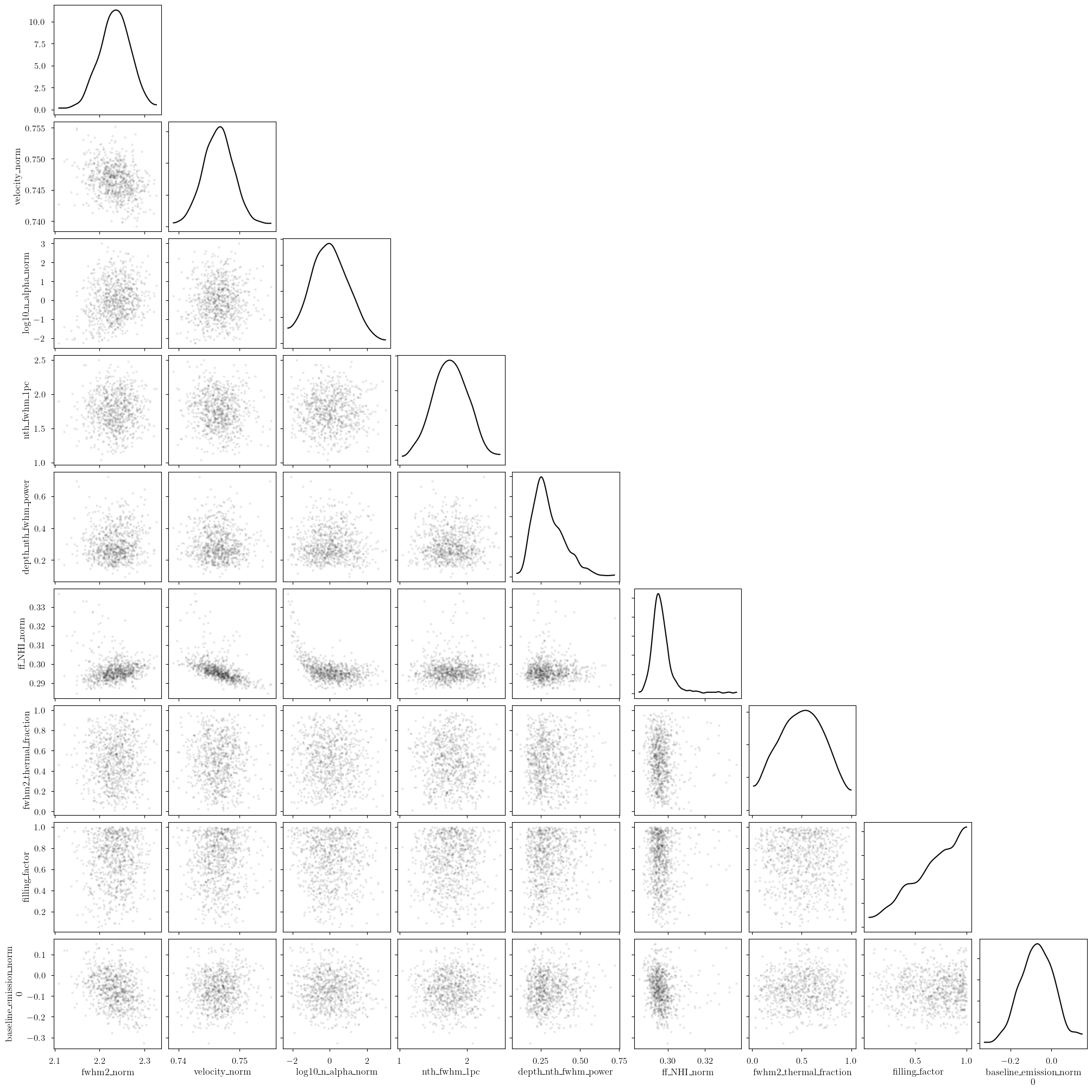

_ = plot_pair(
model.trace.solution_0.sel(cloud=2, draw=slice(None, None, 10)), # samples
model.cloud_freeRVs + model.hyper_freeRVs + model.baseline_freeRVs, # var_names to plot
kind="scatter", # plot type
)
[46]:

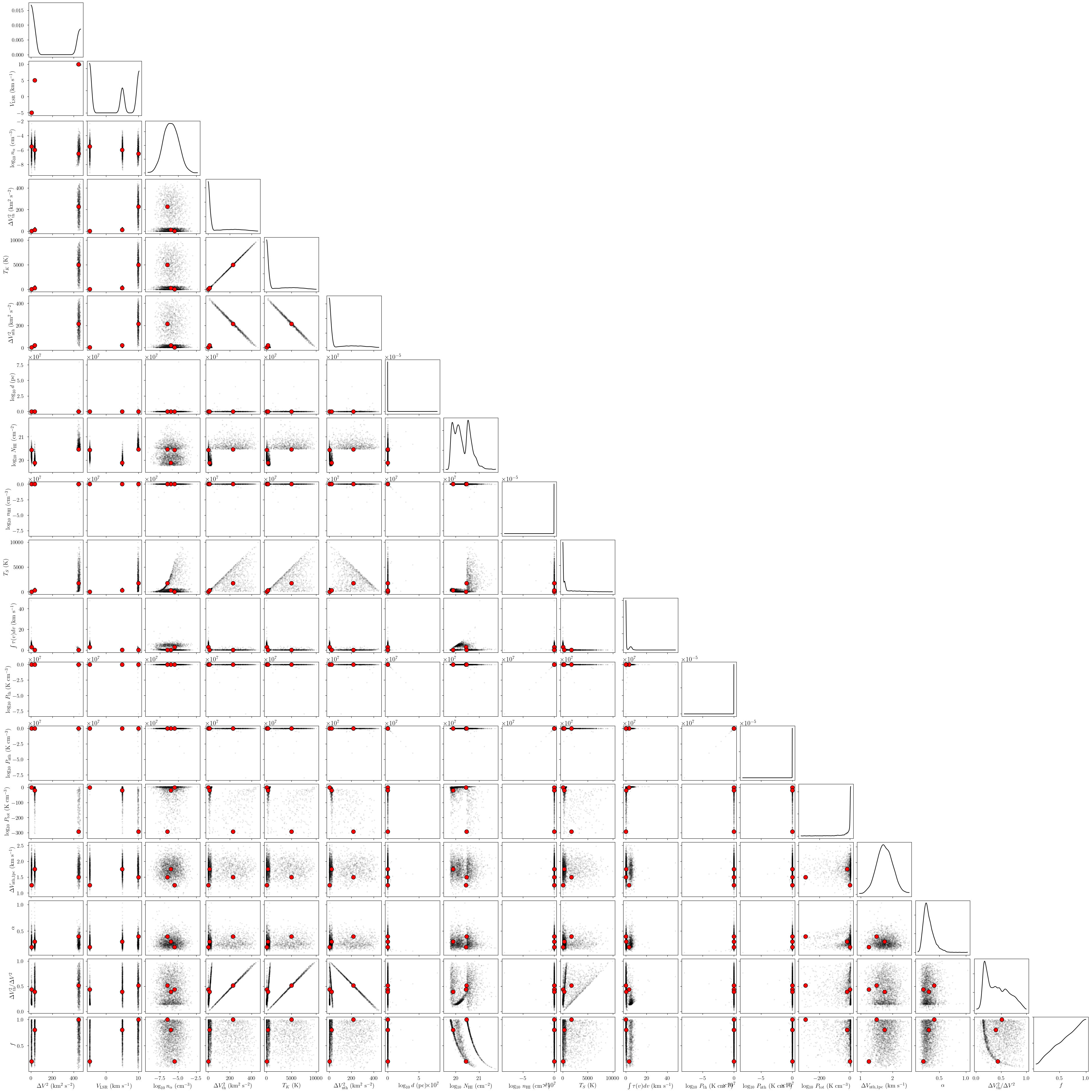

_ = plot_pair(
model.trace.solution_0.sel(draw=slice(None, None, 10)), # samples
var_names, # var_names to plot
combine_dims=["cloud"], # concatenate clouds
labeller=model.labeller, # label manager
kind="scatter", # plot type
reference_values=sim_params, # truths
)
[47]:
# identify simulation cloud corresponding to each posterior cloud
sim_cloud_map = {}
for i in range(n_clouds):
posterior_velocity = model.trace.solution_0['velocity'].sel(cloud=i).data.mean()
match = np.argmin(np.abs(sim_params["velocity"] - posterior_velocity))
sim_cloud_map[i] = match
sim_cloud_map
[47]:
{0: np.int64(0), 1: np.int64(1), 2: np.int64(2)}
[48]:
print("cloud freeRVs", model.cloud_freeRVs)
print("cloud deterministics", model.cloud_deterministics)
print("hyper freeRVs", model.hyper_freeRVs)
print("hyper deterministics", model.hyper_deterministics)
cloud freeRVs ['fwhm2_norm', 'velocity_norm', 'log10_n_alpha_norm', 'nth_fwhm_1pc', 'depth_nth_fwhm_power', 'ff_NHI_norm', 'fwhm2_thermal_fraction', 'filling_factor']
cloud deterministics ['fwhm2', 'velocity', 'log10_n_alpha', 'fwhm2_thermal', 'tkin', 'fwhm2_nonthermal', 'log10_depth', 'log10_NHI', 'log10_nHI', 'tspin', 'tau_total', 'log10_Pth', 'log10_Pnth', 'log10_Ptot']
hyper freeRVs []
hyper deterministics []

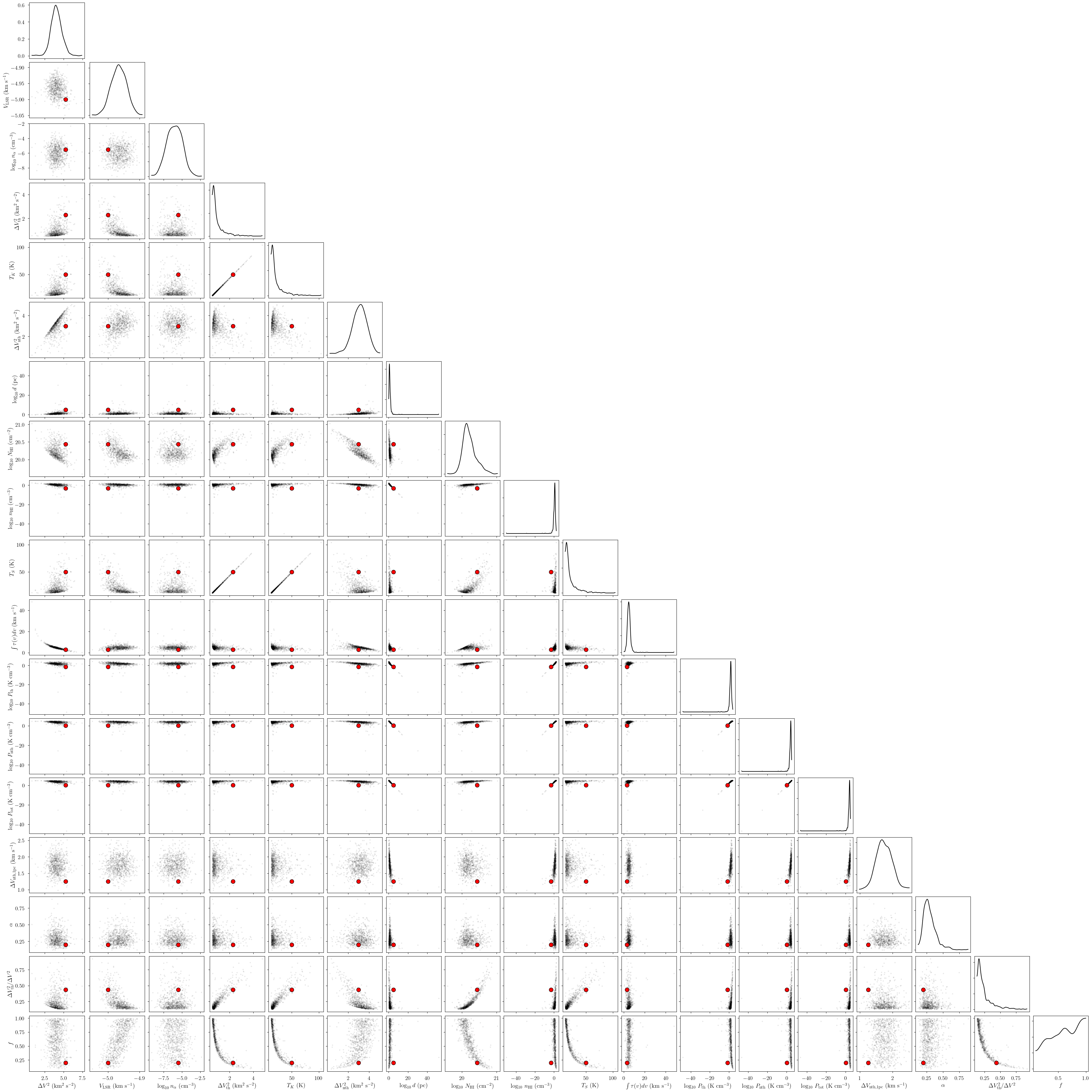

[49]:
cloud = 0
# subset of sim_params
my_sim_params = {}
for var_name in var_names:
my_sim_params[var_name] = sim_params[var_name][sim_cloud_map[cloud]]
_ = plot_pair(
model.trace.solution_0.sel(cloud=cloud, draw=slice(None, None, 10)), # samples
var_names, # var_names to plot
labeller=model.labeller, # label manager
kind="scatter", # plot type
reference_values=my_sim_params, # truths
)

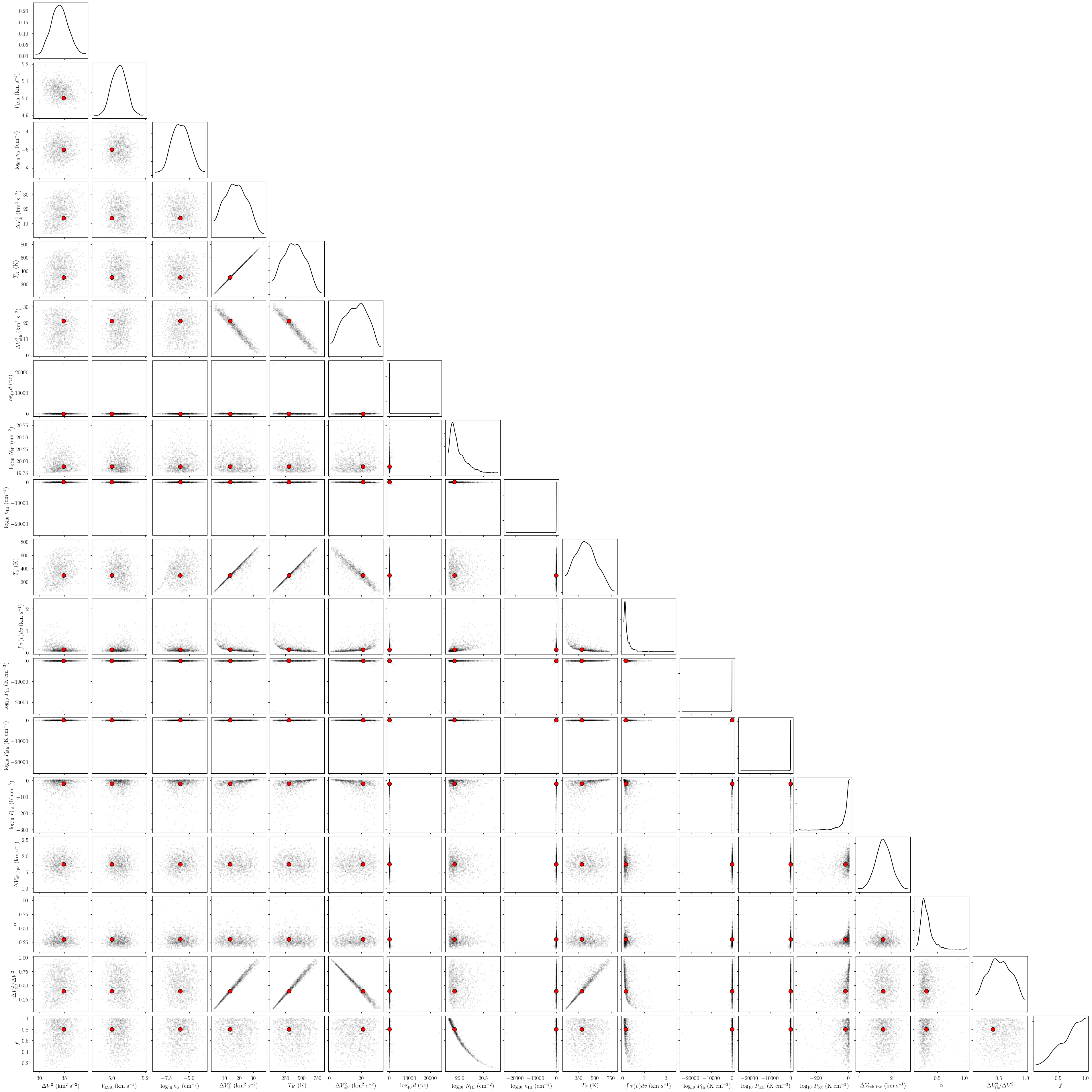

[50]:
cloud = 1
# subset of sim_params
my_sim_params = {}
for var_name in var_names:
my_sim_params[var_name] = sim_params[var_name][sim_cloud_map[cloud]]
_ = plot_pair(
model.trace.solution_0.sel(cloud=cloud, draw=slice(None, None, 10)), # samples
var_names, # var_names to plot
labeller=model.labeller, # label manager
kind="scatter", # plot type
reference_values=my_sim_params, # truths
)

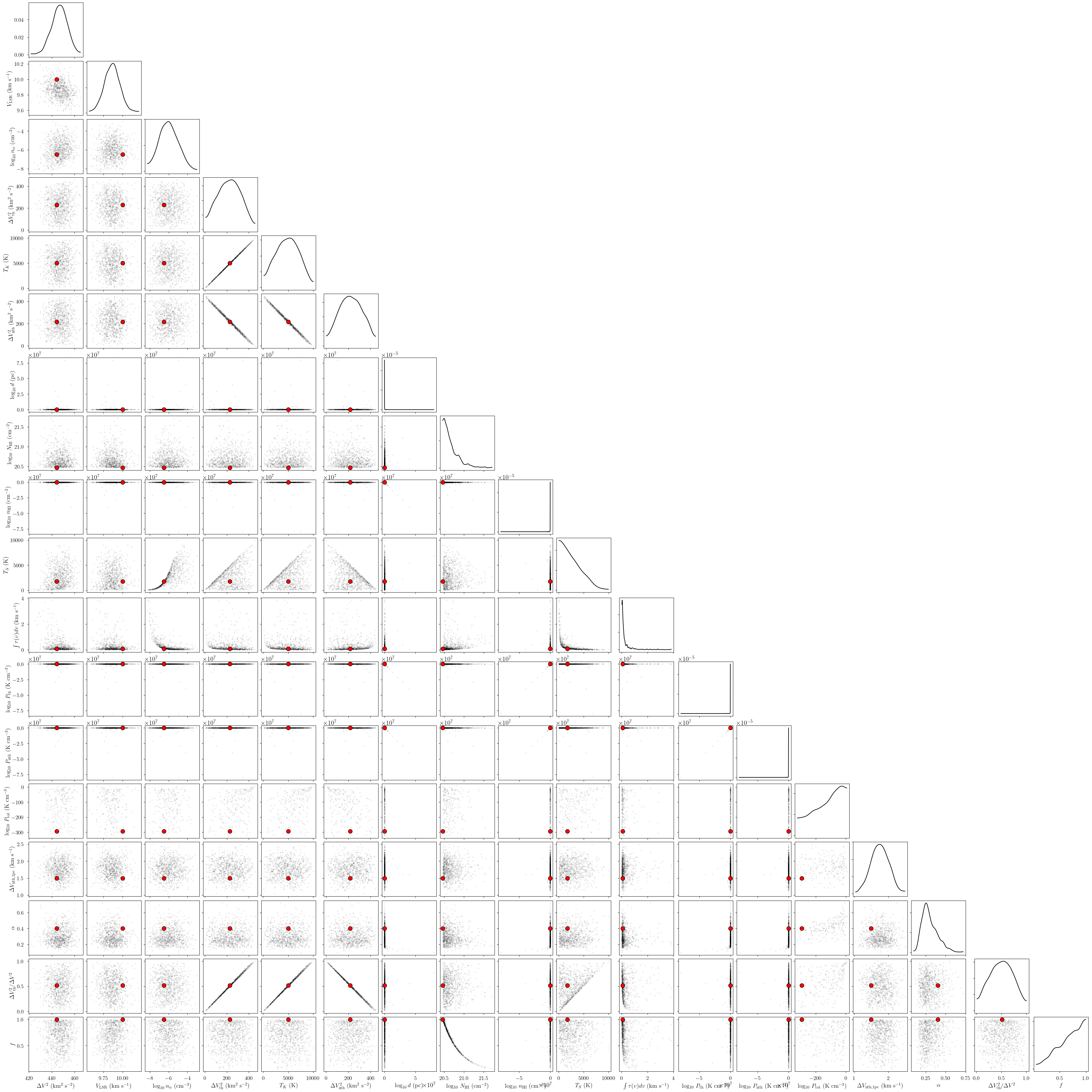

[51]:
cloud = 2
# subset of sim_params
my_sim_params = {}
for var_name in var_names:
my_sim_params[var_name] = sim_params[var_name][sim_cloud_map[cloud]]
_ = plot_pair(
model.trace.solution_0.sel(cloud=cloud, draw=slice(None, None, 10)), # samples
var_names, # var_names to plot
labeller=model.labeller, # label manager
kind="scatter", # plot type
reference_values=my_sim_params, # truths
)
[52]:
point_stats = az.summary(model.trace.solution_0, kind='stats')
print("BIC:", model.bic())
display(point_stats)
BIC: -220.72045983450883
/home/twenger/miniforge3/envs/bayes_spec-dev/lib/python3.13/site-packages/numpy/_core/_methods.py:191: RuntimeWarning: invalid value encountered in subtract
x = asanyarray(arr - arrmean)
| mean | sd | hdi_3% | hdi_97% | |
|---|---|---|---|---|
| baseline_emission_norm[0] | -0.064 | 8.000000e-02 | -0.211 | 0.091 |
| log10_n_alpha_norm[0] | -0.007 | 1.015000e+00 | -1.941 | 1.874 |
| log10_n_alpha_norm[1] | 0.021 | 9.920000e-01 | -1.811 | 1.866 |
| log10_n_alpha_norm[2] | 0.062 | 9.460000e-01 | -1.714 | 1.819 |
| fwhm2_norm[0] | 0.020 | 4.000000e-03 | 0.014 | 0.027 |
| fwhm2_norm[1] | 0.170 | 8.000000e-03 | 0.155 | 0.187 |
| fwhm2_norm[2] | 2.233 | 3.500000e-02 | 2.171 | 2.299 |
| velocity_norm[0] | 0.376 | 1.000000e-03 | 0.375 | 0.377 |
| velocity_norm[1] | 0.626 | 1.000000e-03 | 0.624 | 0.628 |
| velocity_norm[2] | 0.747 | 3.000000e-03 | 0.741 | 0.751 |
| nth_fwhm_1pc[0] | 1.747 | 2.490000e-01 | 1.248 | 2.191 |
| nth_fwhm_1pc[1] | 1.750 | 2.540000e-01 | 1.297 | 2.246 |
| nth_fwhm_1pc[2] | 1.749 | 2.500000e-01 | 1.253 | 2.202 |
| depth_nth_fwhm_power[0] | 0.298 | 9.700000e-02 | 0.141 | 0.475 |
| depth_nth_fwhm_power[1] | 0.301 | 1.030000e-01 | 0.145 | 0.485 |
| depth_nth_fwhm_power[2] | 0.302 | 1.020000e-01 | 0.139 | 0.483 |
| ff_NHI_norm[0] | 0.094 | 5.200000e-02 | 0.050 | 0.136 |
| ff_NHI_norm[1] | 0.060 | 3.000000e-03 | 0.055 | 0.066 |
| ff_NHI_norm[2] | 0.296 | 6.000000e-03 | 0.287 | 0.305 |
| fwhm2_thermal_fraction[0] | 0.252 | 1.350000e-01 | 0.126 | 0.520 |
| fwhm2_thermal_fraction[1] | 0.512 | 2.190000e-01 | 0.128 | 0.893 |
| fwhm2_thermal_fraction[2] | 0.501 | 2.220000e-01 | 0.113 | 0.904 |
| filling_factor[0] | 0.592 | 2.530000e-01 | 0.181 | 0.998 |
| filling_factor[1] | 0.681 | 2.250000e-01 | 0.274 | 1.000 |
| filling_factor[2] | 0.671 | 2.320000e-01 | 0.259 | 1.000 |
| fwhm2[0] | 4.048 | 7.280000e-01 | 2.702 | 5.379 |
| fwhm2[1] | 34.038 | 1.695000e+00 | 30.920 | 37.316 |
| fwhm2[2] | 446.527 | 6.901000e+00 | 434.181 | 459.814 |
| velocity[0] | -4.967 | 2.400000e-02 | -5.009 | -4.922 |
| velocity[1] | 5.042 | 4.200000e-02 | 4.966 | 5.124 |
| velocity[2] | 9.864 | 1.050000e-01 | 9.658 | 10.053 |
| log10_n_alpha[0] | -6.007 | 1.015000e+00 | -7.941 | -4.126 |
| log10_n_alpha[1] | -5.979 | 9.920000e-01 | -7.811 | -4.134 |
| log10_n_alpha[2] | -5.938 | 9.460000e-01 | -7.714 | -4.181 |
| fwhm2_thermal[0] | 1.012 | 5.840000e-01 | 0.517 | 2.126 |
| fwhm2_thermal[1] | 17.475 | 7.600000e+00 | 3.842 | 30.558 |
| fwhm2_thermal[2] | 223.744 | 9.920200e+01 | 43.297 | 396.722 |
| tkin[0] | 22.129 | 1.276200e+01 | 11.297 | 46.462 |
| tkin[1] | 381.930 | 1.661070e+02 | 83.967 | 667.893 |
| tkin[2] | 4890.244 | 2.168206e+03 | 946.326 | 8670.921 |
| fwhm2_nonthermal[0] | 3.035 | 7.800000e-01 | 1.555 | 4.497 |
| fwhm2_nonthermal[1] | 16.563 | 7.369000e+00 | 3.508 | 28.924 |
| fwhm2_nonthermal[2] | 222.782 | 9.908400e+01 | 42.309 | 394.782 |
| log10_depth[0] | 1.331 | 1.732000e+00 | 0.000 | 3.019 |
| log10_depth[1] | 91.303 | 1.086404e+03 | 0.002 | 201.257 |
| log10_depth[2] | 613233.938 | 2.575101e+07 | 0.385 | 204446.716 |
| log10_NHI[0] | 20.230 | 1.980000e-01 | 19.919 | 20.642 |
| log10_NHI[1] | 19.981 | 1.950000e-01 | 19.757 | 20.363 |
| log10_NHI[2] | 20.683 | 2.090000e-01 | 20.462 | 21.062 |
| log10_nHI[0] | 0.409 | 1.798000e+00 | -1.464 | 2.367 |
| log10_nHI[1] | -89.811 | 1.086407e+03 | -199.789 | 2.043 |
| log10_nHI[2] | -613231.743 | 2.575101e+07 | -204444.403 | 1.938 |
| tspin[0] | 22.114 | 1.275000e+01 | 11.295 | 46.409 |
| tspin[1] | 357.515 | 1.616940e+02 | 68.057 | 641.853 |
| tspin[2] | 2773.682 | 1.934143e+03 | 46.635 | 6175.740 |
| tau_total[0] | 5.056 | 2.849000e+00 | 2.250 | 7.902 |
| tau_total[1] | 0.228 | 2.440000e-01 | 0.045 | 0.611 |
| tau_total[2] | 0.282 | 5.270000e-01 | 0.018 | 1.015 |
| log10_Pth[0] | 1.706 | 1.841000e+00 | -0.266 | 4.054 |
| log10_Pth[1] | -87.282 | 1.086424e+03 | -197.297 | 4.871 |
| log10_Pth[2] | -613228.113 | 2.575101e+07 | -204440.952 | 5.939 |
| log10_Pnth[0] | 3.699 | 1.747000e+00 | 1.925 | 5.107 |
| log10_Pnth[1] | -85.825 | 1.086390e+03 | -195.628 | 4.914 |
| log10_Pnth[2] | -613226.630 | 2.575101e+07 | -204439.082 | 4.767 |
| log10_Ptot[0] | 3.705 | 1.749000e+00 | 1.929 | 5.131 |
| log10_Ptot[1] | -inf | NaN | -195.619 | 5.068 |
| log10_Ptot[2] | -inf | NaN | -inf | -41.035 |
[ ]:
